2332141-3 - TE Connectivity

Description: RECEPTACLE ASSY, 56POS, VERT, SLIVER 2.0

Download 2332141-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

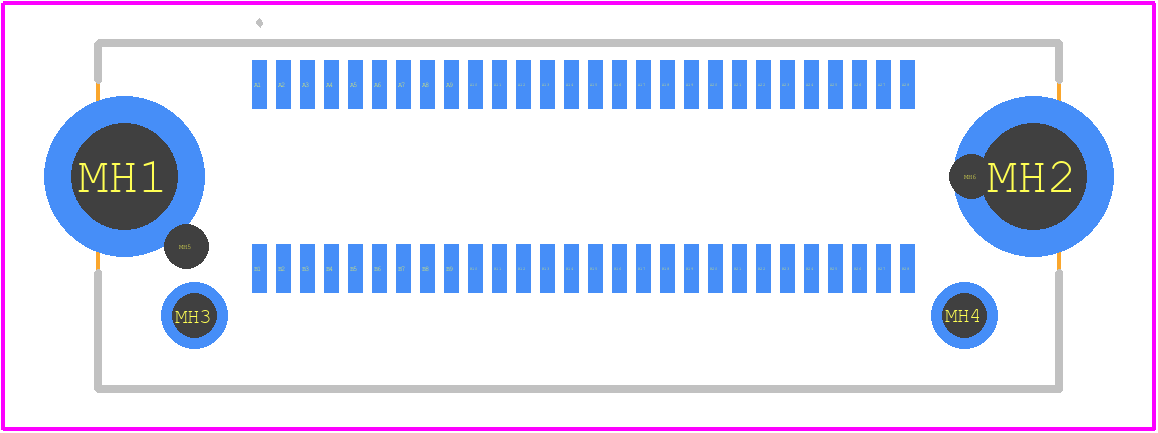

2332141-3 - TE Connectivity PCB footprint - Other - Other - 2332141-3-2
click to zoom
3D Models
2332141-3 - TE Connectivity  - 3D model - Other - 2332141-3-2
click to zoom

2332141-3 Details

  • Manufacturer Part Number:

    2332141-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    15 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • Connector Support Type:

    CABLE ASSEMBLY

  • Design Use:

    SIGNAL

  • Finish Thickness:

    30

  • Material:

    COPPER ALLOY

  • Mounting Style:

    STRAIGHT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Rated Current:

    1.1 A

  • Terminal Type:

    SURFACE MOUNT

  • Wire Gauge:

    0 AWG

2332141-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2332141-3 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or terminals specifically designed for smaller wire sizes. However, it's crucial to verify the wire size and terminal compatibility before making a connection.
  • The 2332141-3 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95%. However, it's essential to consider the specific environmental conditions of your application and ensure the connector meets those requirements.
  • Yes, it's essential to follow the recommended PCB layout guidelines provided by TE Connectivity to ensure proper connector mating and to prevent damage to the PCB or connector. This includes maintaining a minimum clearance of 1.5 mm between the connector and other components.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2332141-3 Overview

Use the download button to access the 2332141-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23321, or try a keyword search, such as Wires and Cables
