2339800-1 - TE Connectivity

Description: PCB Mount Header, Horizontal, Wire-to-Board, 12 Position, 1.8 mm / 7.8 mm [.071 in / .307 in] Centerline, Fully Shrouded, Tin, Through Hole - Solder

Download 2339800-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2339800-1 - TE Connectivity - PCB symbol
click to zoom

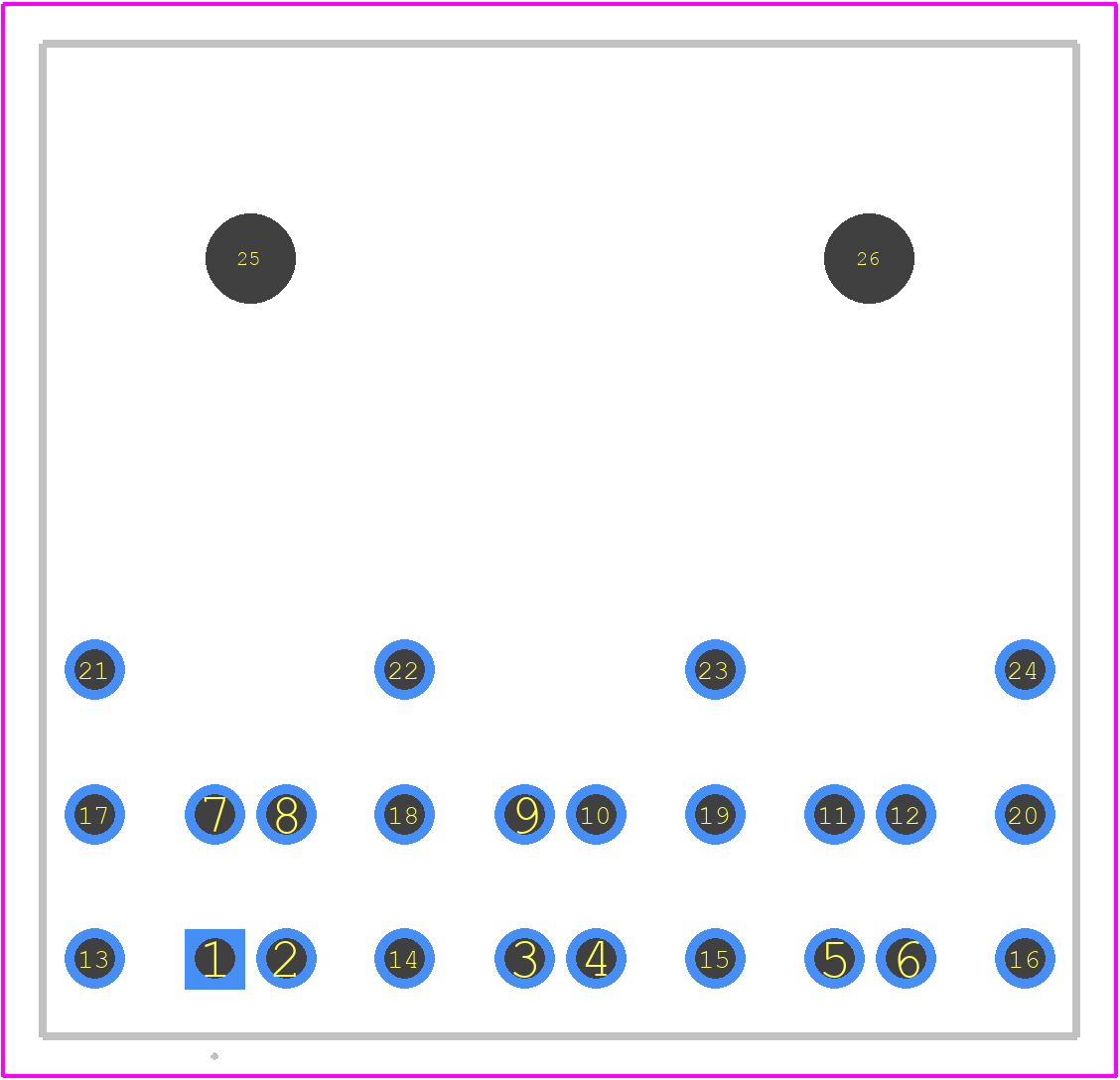

PCB Footprints
2339800-1 - TE Connectivity PCB footprint - Other - Other - 2339800-1-2
click to zoom
3D Models
2339800-1 - TE Connectivity - 3D model - Other - 2339800-1-2
click to zoom

2339800-1 Details

  • Manufacturer Part Number:

    2339800-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    13 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.8

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Rated Voltage:

    60 V

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    SOLDER

2339800-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2339800-1 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 2339800-1 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper sealing and protection. Consult with TE Connectivity or a qualified engineer to ensure the connector meets the specific environmental requirements.
  • The 2339800-1 connector is rated for operation in temperatures ranging from -40°C to 105°C (-40°F to 221°F). Exceeding this temperature range may affect the connector's performance and reliability.
  • The 2339800-1 connector is designed to be compatible with other TE Connectivity products. However, when using it with third-party components, ensure compatibility and consult with the component manufacturers to ensure reliable operation.
