Description:Body Features: Connector & Keying Code B | Primary Product Color White | Configuration Features: Number of Rows 2 | Number of Positions 12 | PCB Mount Orientation Horizontal | Contact Features: Contact Size .5mm | Mating Tab Width .5 MM | Mating Tab Thickness .4 MM | Contact Mating Area Plating Material Tin | Mating Tab Thickness .016 INCH | Mating Tab Width .019 INCH | Contact Current Rating (Max) 3 AMP | Contact Type Tab | Electrical Characteristics: Operating Voltage 60 VDC | Housing Features: Centerline
The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 2339800-2 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate a range of wire sizes. However, it's crucial to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
The 2339800-2 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
The 2339800-2 connector is designed to be resistant to moisture and corrosion, but it's not suitable for use in extremely harsh environments. If you need to use the connector in an environment with high humidity or exposure to chemicals, consider using additional protective measures, such as conformal coatings or sealing, and consult with TE Connectivity or a qualified engineer for guidance.
Trust Checks
No trust score is available for this model.
Trust Score Unavailable
Sponsored
2339800-2 Overview

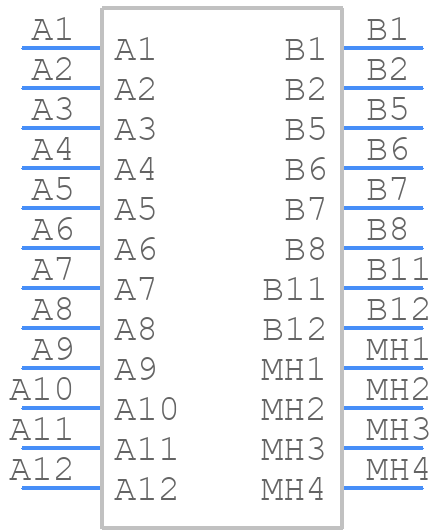

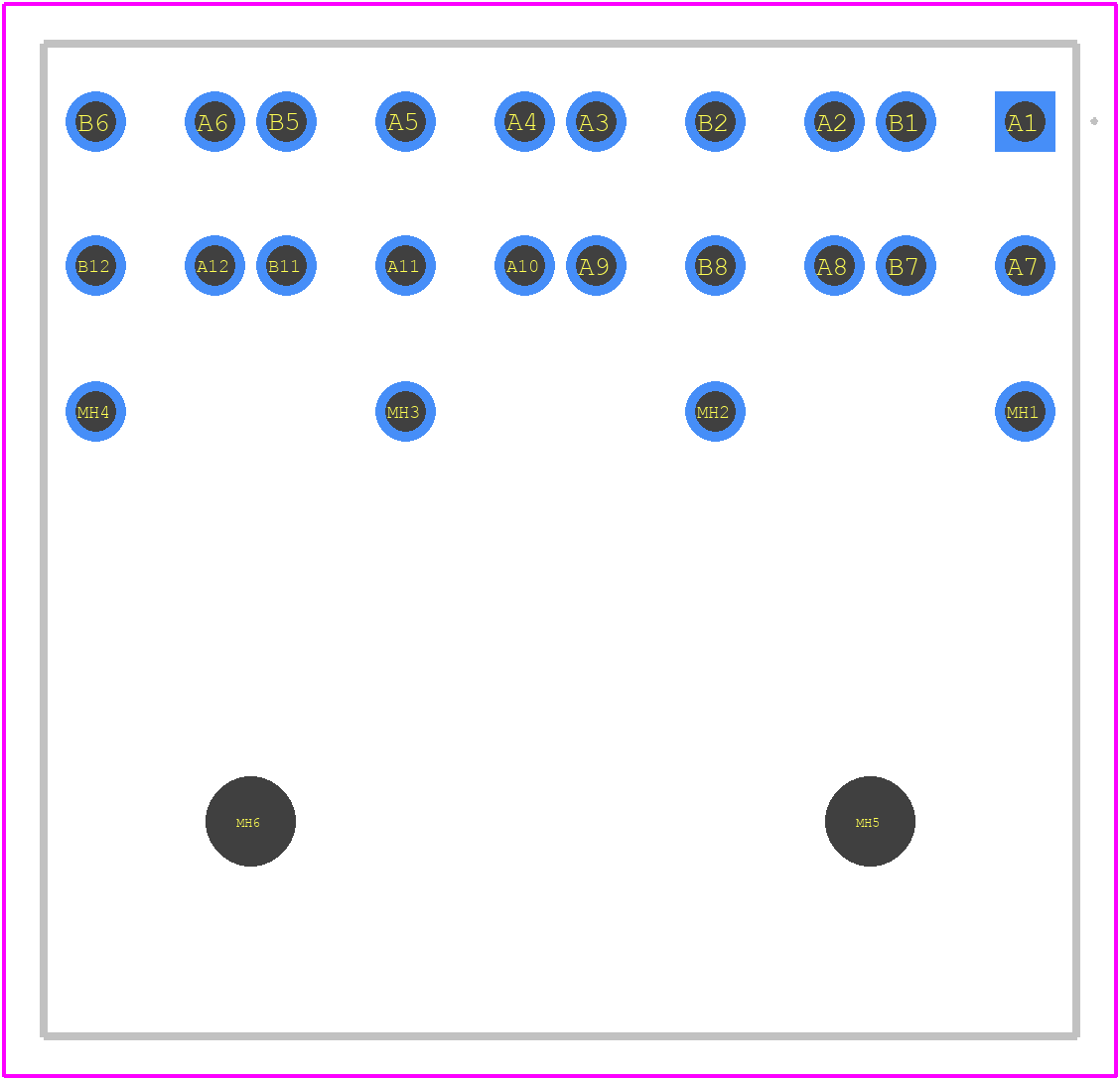

Use the download button to access the 2339800-2 3D model. You can still request or build the schematic symbol and PCB footprint by using the respective build or request forms on this page.
