2339800-9 - TE Connectivity

Description: Body Features: Connector & Keying Code Z | Primary Product Color Blue | Configuration Features: Number of Positions 12 | PCB Mount Orientation Horizontal | Number of Rows 2 | Contact Features: Contact Mating Area Plating Material Tin | Contact Size .5mm | Contact Current Rating (Max) 3 AMP | Mating Tab Thickness .016 INCH | Mating Tab Width .5 MM | Mating Tab Thickness .4 MM | Mating Tab Width .019 INCH | Contact Type Tab | Electrical Characteristics: Operating Voltage 60 VDC | Housing Features: Centerline

Download 2339800-9 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

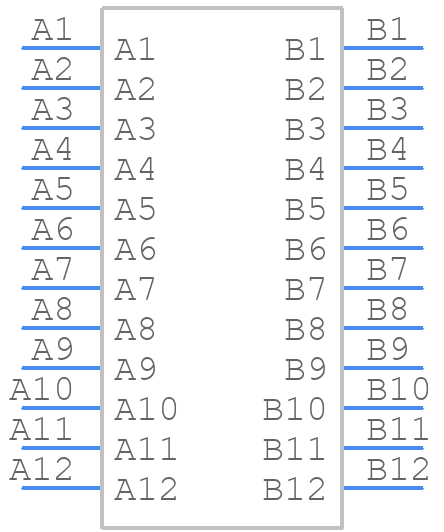

2339800-9 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

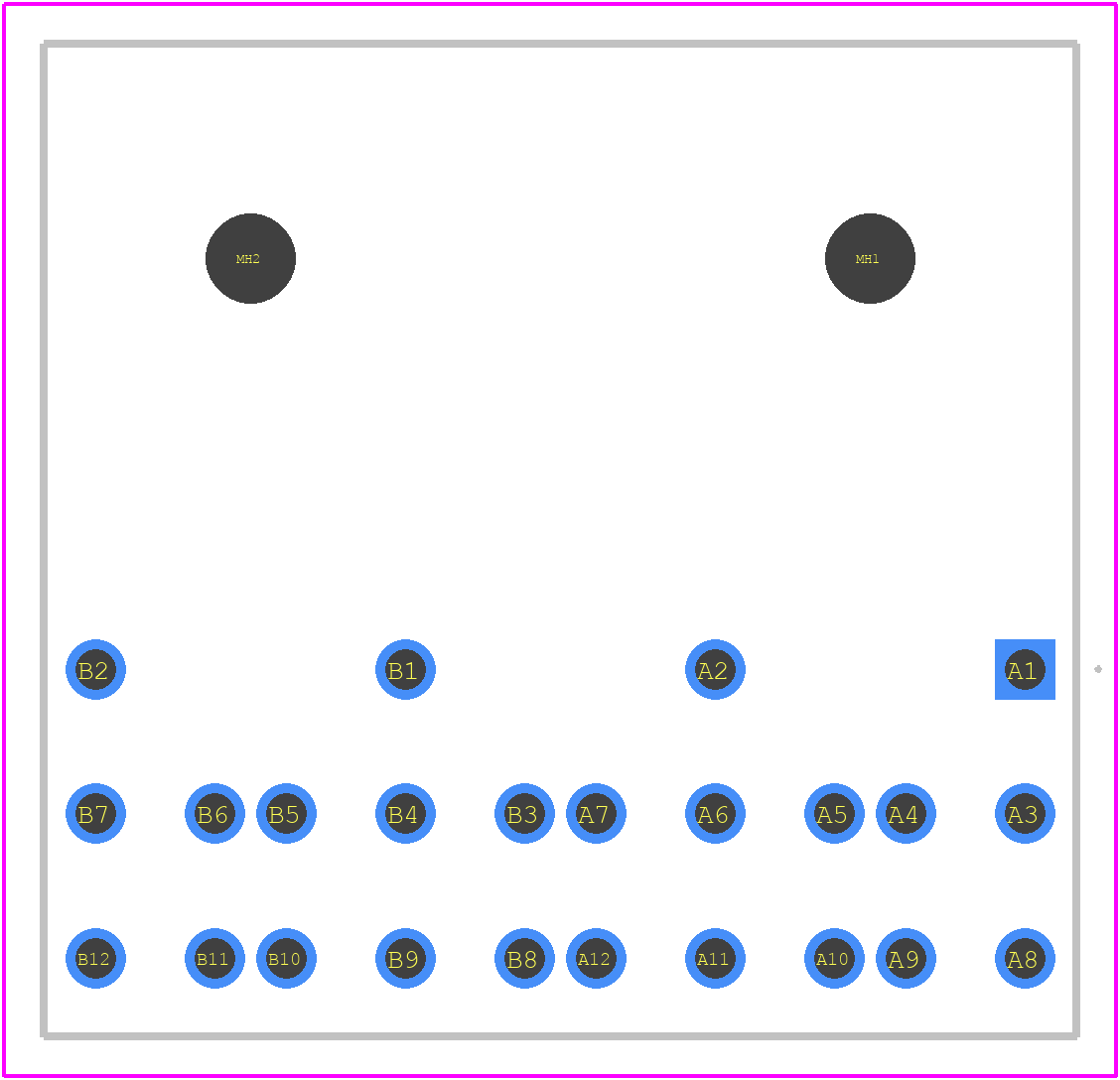

2339800-9 - TE Connectivity PCB footprint - Other - Other - 2339800-9-2
click to zoom
3D Models
2339800-9 - TE Connectivity - 3D model - Other - 2339800-9-2
click to zoom

2339800-9 Details

  • Manufacturer Part Number:

    2339800-9

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    14 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.8

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    3 A

  • Rated Voltage:

    60 V

  • Terminal Pitch:

    1.8 mm

  • Termination Type:

    SOLDER

2339800-9 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 2339800-9 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
  • The operating temperature range for the 2339800-9 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector operates within this temperature range to maintain its performance and reliability.
  • Yes, the 2339800-9 connector is suitable for outdoor use. It has a IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter (3.3 feet) for 30 minutes.
  • While the datasheet specifies AWG 20-24 wire sizes, it's possible to use this connector with other wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure the connector's performance and reliability are not compromised.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2339800-9 Overview

Use the download button to access the 2339800-9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23398, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
