236-108 - Wago

Description: PCB terminal block; 2.5 mm²; Pin spacing 5/5.08 mm; 8-pole; CAGE CLAMP®; commoning option

Download 236-108 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
236-108 - Wago - PCB symbol
click to zoom
PCB Footprints

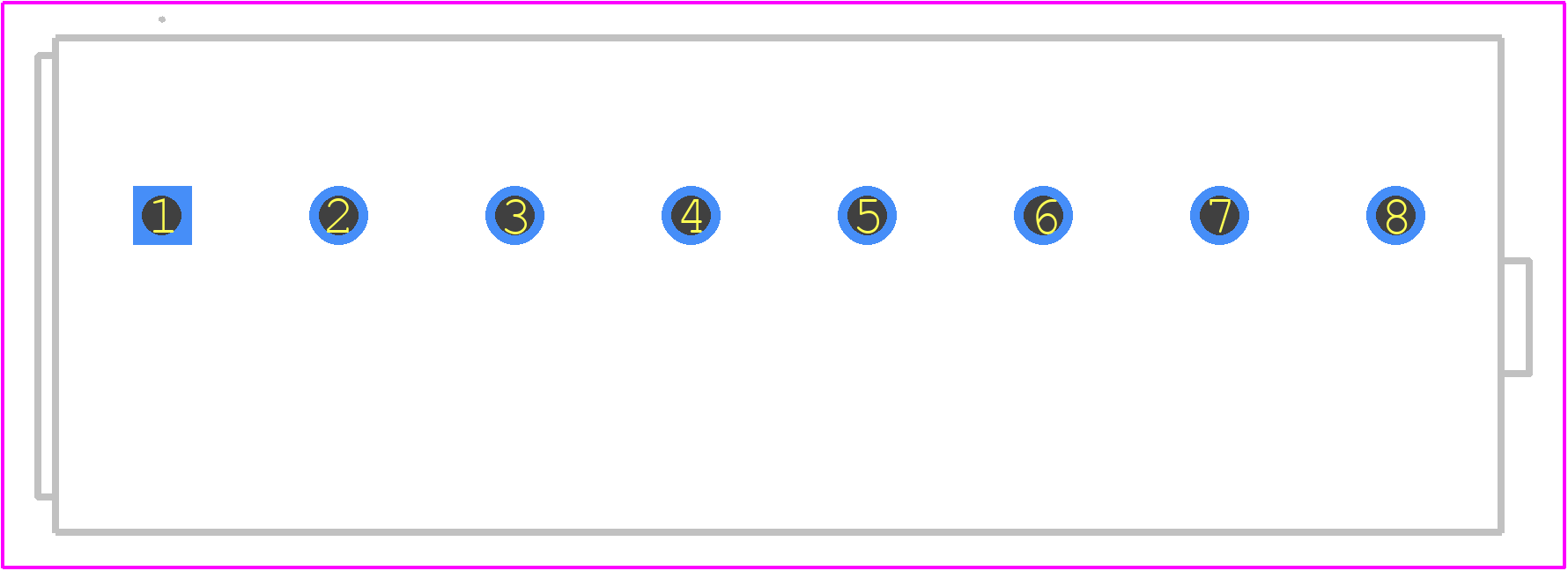

236-108 - Wago PCB footprint - Other - Other - 236-108-2
click to zoom
3D Models
236-108 - Wago - 3D model - Other - 236-108-2
click to zoom

236-108 Details

  • Manufacturer Part Number:

    236-108

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.5

  • Additional Feature:

    CAGE CLAMP

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

236-108 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the screws on the 236-108 connector is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 236-108 connector is designed to be used in harsh environments and can withstand temperatures ranging from -40°C to 125°C and vibrations up to 10g.
  • Yes, the 236-108 connector is suitable for power applications and can handle currents up to 41 A, depending on the specific wire size and application.
  • Yes, the 236-108 connector is compatible with other WAGO products, including the TOPJOB S and XCOM, and can be used as part of a larger WAGO connector system.
