2385002-8 - TE Connectivity

Description: Body Features: Primary Product Color Green | Product Orientation Right Angle | Configuration Features: Number of Rows 1 | Number of Positions 8 | Stacking Configuration Side Stackable | Contact Features: Contact Current Rating (Max) 4 AMP | Contact Base Material Copper Alloy | Contact Mating Area Plating Material Tin | Electrical Characteristics: Operating Voltage 150 VAC | Housing Features: Housing Material PA 66 | Centerline (Pitch) .098 INCH | Centerline (Pitch) 2.5 MM | Mechanical Attachment: Connector

Download 2385002-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2385002-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

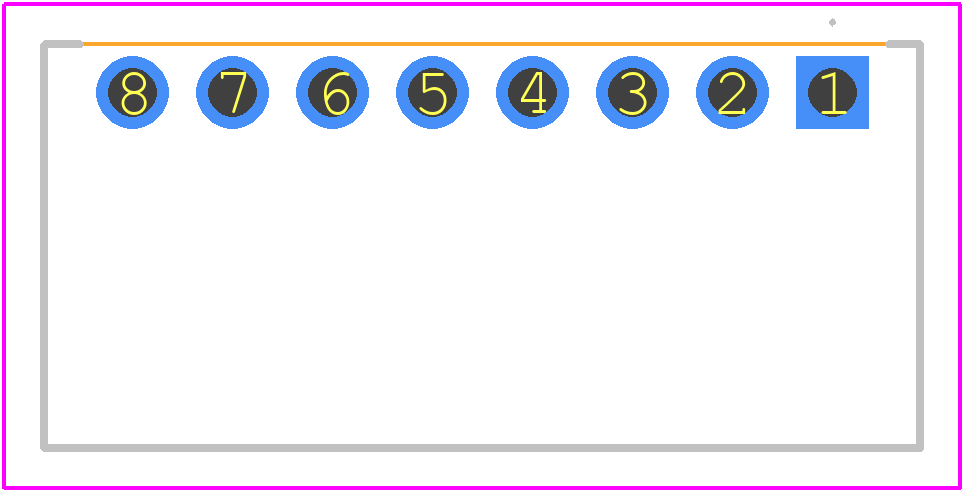

2385002-8 - TE Connectivity PCB footprint - Other - Other - 2385002-8-3
click to zoom
3D Models
2385002-8 - TE Connectivity - 3D model - Other - 2385002-8-3
click to zoom

2385002-8 Details

  • Manufacturer Part Number:

    2385002-8

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    22 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Mounting Type:

    BOARD

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    4 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2385002-8 Overview

Use the download button to access the 2385002-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 23850, or try a keyword search, such as Terminals and Terminal Blocks
