23LC1024-I/SN footprint, schematic symbol and 3D model by Microchip

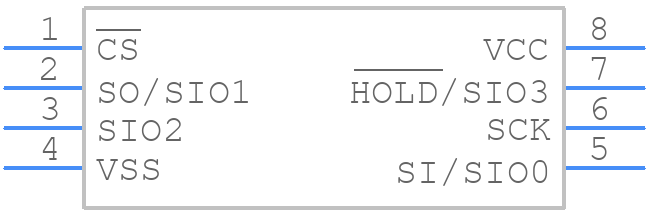

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 23LC1024-I/SN
Part Number 23LC1024-I/SN
Manufacturer Microchip
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SN
Released Date Jan 22, 2016
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

23LC1024-I/SN Details

Manufacturer Part Number:
23LC1024-I/SN
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
SOIC
Package Description:
SOIC-8
Pin Count:
8
Manufacturer Package Code:
SOIC-8
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.32.00.51
Factory Lead Time:
7 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
4
Clock Frequency-Max (fCLK):
20 MHz
I/O Type:
COMMON/SEPARATE
JESD-30 Code:
R-PDSO-G8
Length:
4.9 mm
Memory Density:
1048576 bit
Memory IC Type:
STANDARD SRAM
Memory Width:
8
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Ports:
1
Number of Terminals:
8
Number of Words:
131072 words
Number of Words Code:
128000
Operating Mode:
SYNCHRONOUS
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Organization:
128KX8
Output Characteristics:
3-STATE
Output Enable:
NO
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Parallel/Serial:
SERIAL
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Standby Current-Max:
0.00001 A
Standby Voltage-Min:
2.5 V
Supply Current-Max:
0.01 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Width:
3.9 mm

23LC1024-I/SN Frequently Asked Questions (FAQs)

The maximum clock frequency for the 23LC1024-I/SN is 20 MHz.
Page writes are limited to 128 bytes, and block writes are limited to 4KB. You should ensure that your write operations are within these limits to avoid data corruption.
The WP (Write Protect) pin is used to prevent writes to the entire memory array or specific blocks. When WP is low, the entire memory array is write-protected. When WP is high, the memory array is not write-protected.
The 23LC1024-I/SN requires a specific power-up and power-down sequencing to ensure proper operation. You should ensure that the power supply is stable and within the recommended operating range before accessing the device.
The recommended operating temperature range for the 23LC1024-I/SN is -40°C to +85°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

Community Provided

System Verified

Community Approved

23LC1024-I/SN Overview

Use the download button to access the 23LC1024-I/SN schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 23LC1, or try a keyword search, such as SRAMs
