23S09T-1DCG8 - Renesas Electronics

Description: 2.5V Zero Delay Clock Buffer, Spread Spectrum Compatible

Download 23S09T-1DCG8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

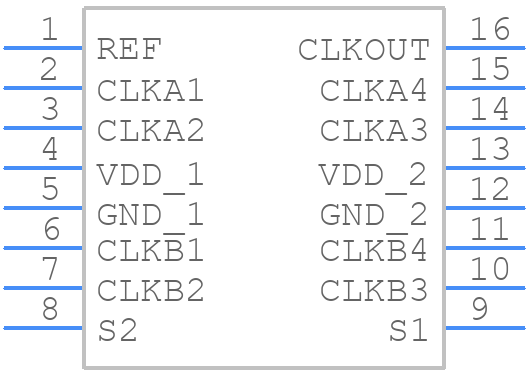

23S09T-1DCG8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
23S09T-1DCG8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG16_PSC-4774
click to zoom
3D Models
23S09T-1DCG8 - Renesas Electronics - 3D model - Small Outline Packages - DCG16_PSC-4774
click to zoom

23S09T-1DCG8 Details

  • Manufacturer Part Number:

    23S09T-1DCG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Manufacturer Package Code:

    DCG16

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Family:

    23S

  • Input Conditioning:

    MUX

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    32 mA

  • Prop. Delay@Nom-Sup:

    8.7 ns

  • Propagation Delay (tpd):

    8.7 ns

  • Same Edge Skew-Max (tskwd):

    0.25 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • fmax-Min:

    133 MHz

23S09T-1DCG8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal design considerations. It's essential to follow these guidelines to ensure optimal thermal performance and prevent overheating.
  • The 23S09T-1DCG8 has an internal overcurrent protection (OCP) feature, but it's recommended to add external OCP circuitry to ensure reliable protection. Renesas provides guidance on implementing OCP in their application notes and design guides.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to consider the derating curves and thermal design guidelines to ensure reliable operation within the specified temperature range.
  • Renesas provides troubleshooting guides and FAQs on their website, which cover common issues and debugging techniques. Additionally, engineers can consult the device's errata sheet and application notes for specific guidance on troubleshooting and debugging.
  • Renesas provides power-up and power-down sequence guidelines in their application notes and datasheet. It's crucial to follow these sequences to ensure proper device operation and prevent damage or malfunction.
