24-3554-18 footprint, schematic symbol and 3D model by ARIES

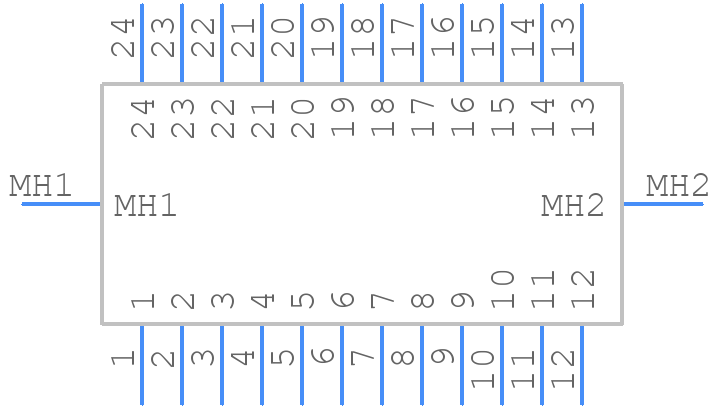

Symbol

click to zoom

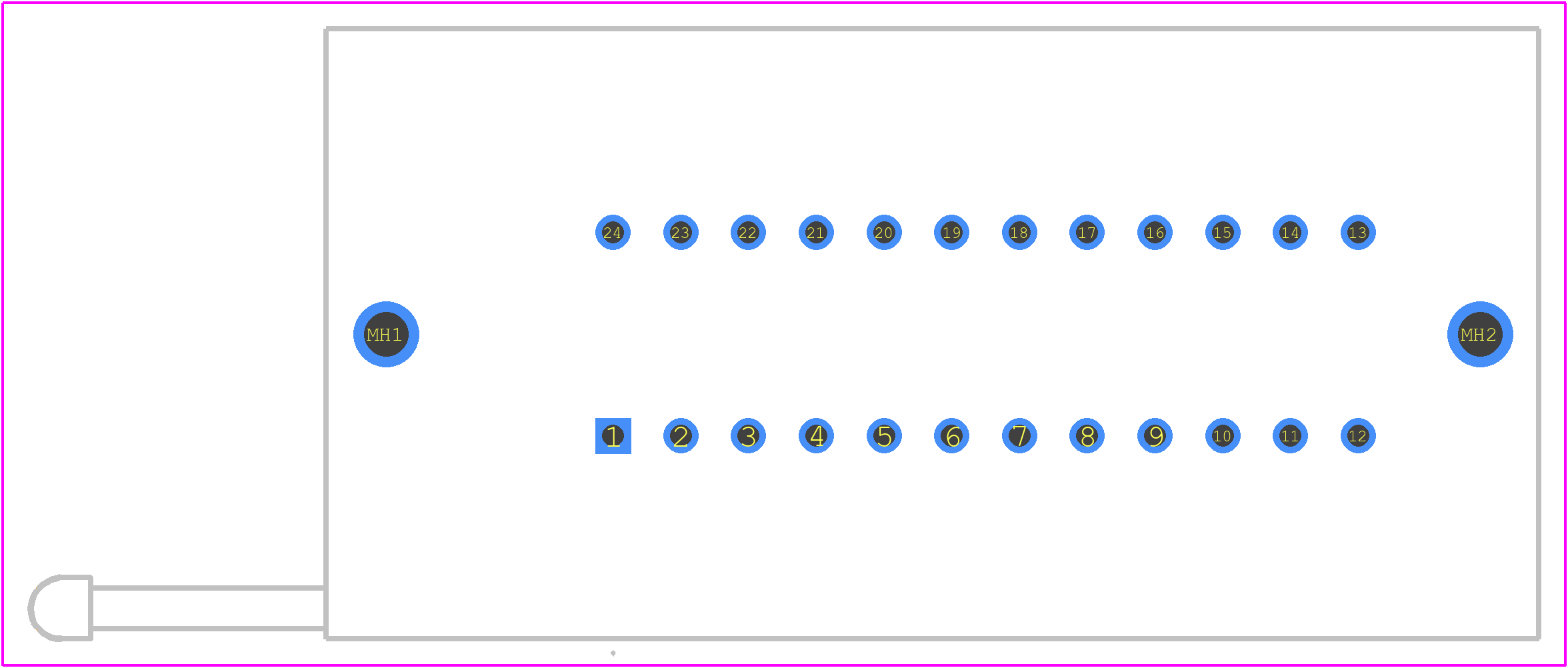

PCB Footprints

24-3554-18 - ARIES PCB footprint - Other - Other - 24-3554-18-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 24-3554-18
Part Number 24-3554-18
Manufacturer ARIES
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - 24-3554-18-1
Released Date May 16, 2023
Last Modified Date May 17, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

24-3554-18 Details

Manufacturer Part Number:
24-3554-18
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Aries Electronics Inc
YTEOL:
7
Additional Feature:
STANDARD: UL 94V-0
Body Breadth:
0.9 inch
Body Depth:
0.47 inch
Body Length:
1.79 inch
Contact Finish Mating:
NICKEL BORON (50)
Contact Finish Termination:
Nickel/Boron (Ni/B)
Contact Material:
BE-NI
Contact Style:
SQ PIN-SKT
Current Rating:
1 A
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP36
Dielectric Withstanding Voltage:
1000VAC V
Housing Material:
POLYETHERETHERKETONE
Insulation Resistance:
1000000000 Ω
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
24
Operating Temperature-Max:
250 °C
Operating Temperature-Min:
-55 °C
PCB Contact Pattern:
RECTANGULAR
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

24-3554-18 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
Yes, the 24-3554-18 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
Yes, the 24-3554-18 connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
The operating temperature range for the 24-3554-18 connector is -40°C to +125°C (-40°F to +257°F), making it suitable for use in a wide range of applications.
Yes, the 24-3554-18 connector is designed to withstand harsh environments, including high humidity and exposure to chemicals, and meets the requirements of IEC 60529 IP67 for ingress protection.

Trust Checks

Community Provided

System Verified

Community Approved

24-3554-18 Overview

Use the download button to access the 24-3554-18 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 24-35, or try a keyword search, such as Sockets and Chip Carriers
