- Part Number 24-600-10
- Manufacturer ARIES
- Pin Count 24
- Part Category Connector
- Package Category Other

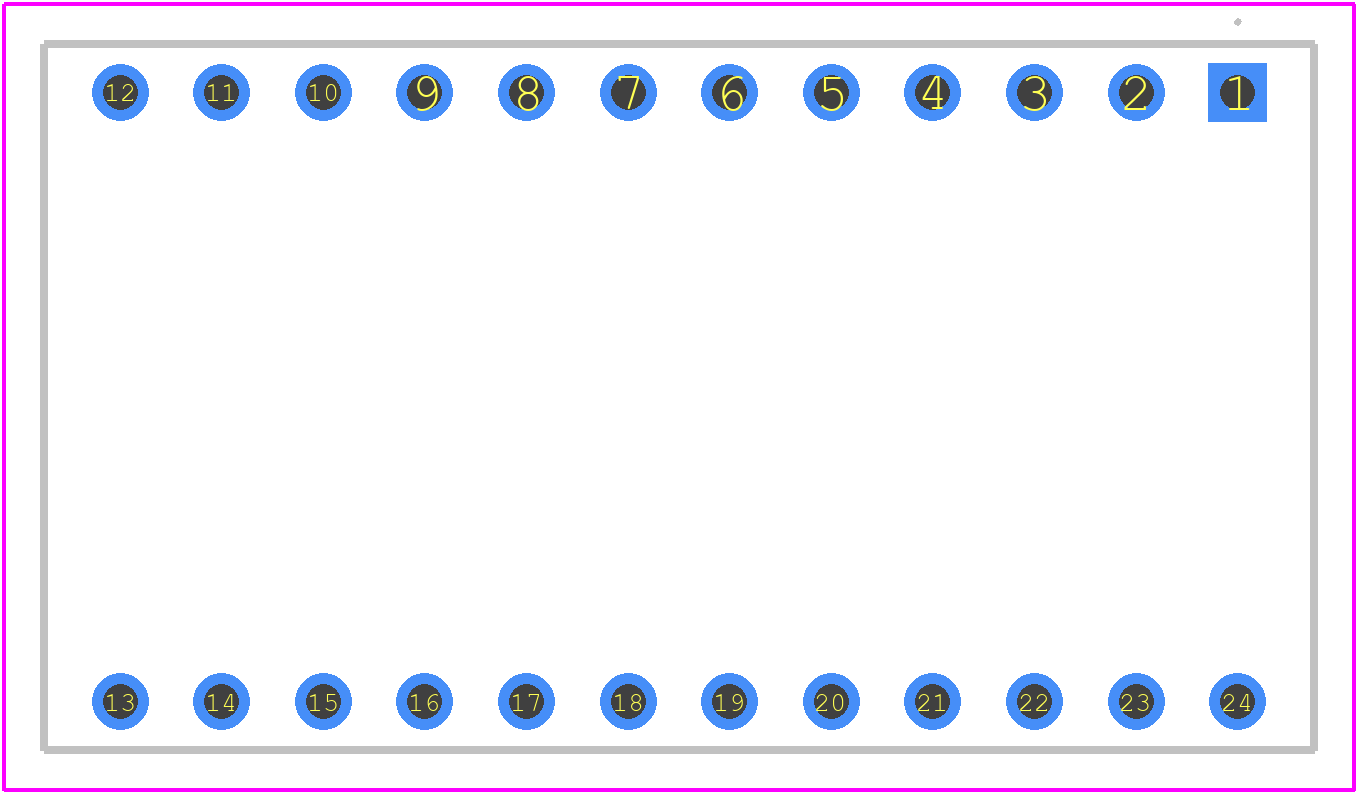

- Footprint Name Other - 24-600-10-3
- Released Date Dec 5, 2023
- Last Modified Date Dec 6, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
24-600-10 Details
-
Manufacturer Part Number:
24-600-10
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.51
-
Manufacturer:
Aries Electronics Inc
-
YTEOL:
7
-
Connector Type:
DIP CONNECTOR
24-600-10 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
-
Yes, the 24-600-10 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
-
Yes, the 24-600-10 connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
-
The operating temperature range for the 24-600-10 connector is -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of applications.
-
Yes, the 24-600-10 connector is designed to withstand harsh environments, including high humidity and exposure to chemicals, and meets the requirements of IEC 60529 IP67 and IP69K.
Trust Checks
Community Provided
System Verified
Community Approved
24-600-10 Overview

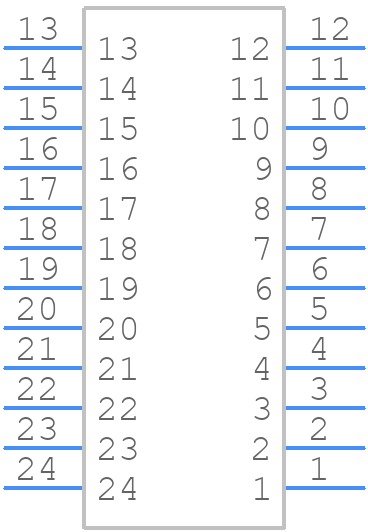

Use the download button to access the 24-600-10 schematic symbol, PCB footprint, and 3D model.
