240-1280-00-0602 - 3M

Description: 40 way std ZIF DIP socket,0.6in pitch 1A 3M Textool 2.54mm Pitch Vertical 40 Way, Through Hole Closed Frame ZIF IC Dip Socket, 1A

Download 240-1280-00-0602 Model

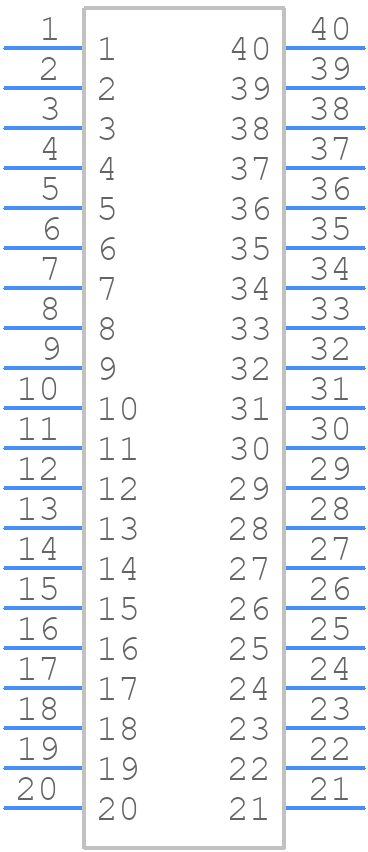

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

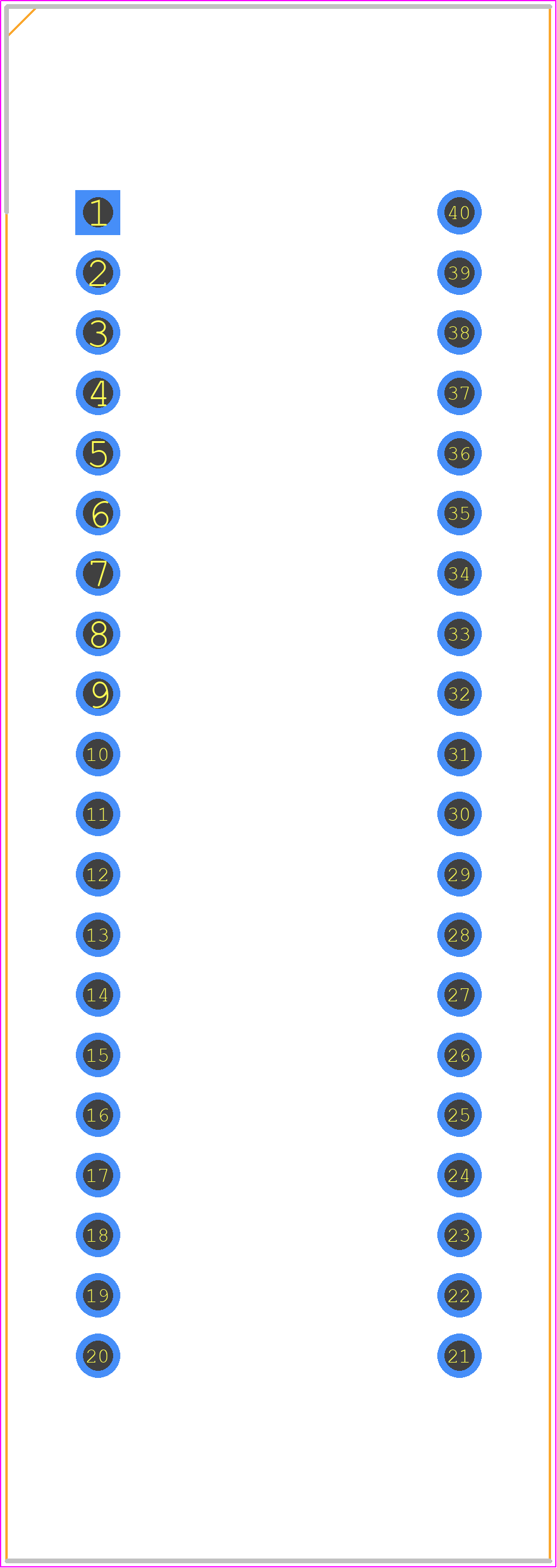

240-1280-00-0602 - 3M PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 240-1280-00-0602
click to zoom

240-1280-00-0602 Details

  • Manufacturer Part Number:

    240-1280-00-0602

  • Manufacturer:

    3M Interconnect

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

240-1280-00-0602 Overview

Use the download button to access the 240-1280-00-0602 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 240-1, or try a keyword search, such as Sockets and Chip Carriers
