24FC04-I/SN - Microchip

Description: • Single Supply with Operation down to 1.7V for 24AA04 and 24FC04 Devices, 2.5V for 24LC04B Devices • Low-Power CMOS Technology: - Read current 1 mA, maximum - Standby current 1 µA, maximum (I-temp.) • Two-Wire Serial Interface, I2C Compatible • Schmitt Trigger Inputs for Noise Suppression • Output Slope Control to Eliminate Ground Bounce • 100 kHz, 400 kHz and 1 MHz Compatibility • Page Write Time: 5 ms, Maximum • Self-Timed Erase/Write Cycle • 16-Byte Page Write Buffer • Hardware Write-Protec

Download 24FC04-I/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

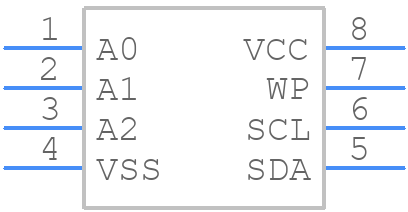

24FC04-I/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
24FC04-I/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - (SN)-narrow,3.9mm body [soic]
click to zoom
3D Models
24FC04-I/SN - Microchip - 3D model - Small Outline Packages - (SN)-narrow,3.9mm body [soic]
click to zoom

24FC04-I/SN Details

  • Manufacturer Part Number:

    24FC04-I/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Clock Frequency-Max (fCLK):

    1 MHz

  • Data Retention Time-Min:

    200

  • Endurance:

    1000000 Write/Erase Cycles

  • I2C Control Byte:

    1010XXMR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Memory Density:

    4096 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    8

  • Number of Words:

    512 words

  • Number of Words Code:

    512

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512X8

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    2.5 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000001 A

  • Supply Current-Max:

    0.003 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    HARDWARE

24FC04-I/SN Frequently Asked Questions (FAQs)

  • The 24FC04-I/SN has a minimum of 1 million write cycles, but the actual number of write cycles may vary depending on the application and usage.
  • The 24FC04-I/SN uses a page write buffer to handle writes. The device can perform page writes (1-128 bytes) and block writes (1-512 bytes). The page write buffer is 128 bytes, and the block write buffer is 512 bytes. The device automatically handles page and block writes based on the write command and data length.
  • The WP (Write Protect) pin is used to prevent writes to the entire device or a specific block of memory. When the WP pin is tied to VCC, the entire device is write-protected. When the WP pin is tied to a specific block address, only that block is write-protected.
  • The 24FC04-I/SN has a built-in retry mechanism for write operations. If a write operation fails, the device will automatically retry the write operation up to 3 times. If the write operation still fails after 3 retries, the device will set the WEL (Write Enable Latch) bit to 0, indicating a write error.
  • The recommended clock frequency for the 24FC04-I/SN is up to 1 MHz. However, the device can operate at clock frequencies up to 3.4 MHz, but with reduced reliability and performance.
