24FC08T-I/SN - Microchip

Description: 8Kb I2C EEPROM, 1MHz 1.7-5.5V, 8-SOIC

Download 24FC08T-I/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

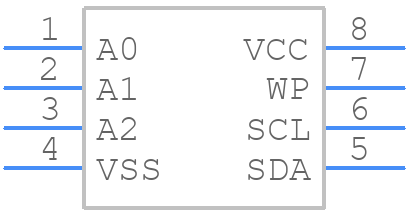

24FC08T-I/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
24FC08T-I/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead(SN) SOIC
click to zoom
3D Models
24FC08T-I/SN - Microchip - 3D model - Small Outline Packages - 8-Lead(SN) SOIC
click to zoom

24FC08T-I/SN Details

  • Manufacturer Part Number:

    24FC08T-I/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2019-12-11

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Memory IC Type:

    EEPROM

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

24FC08T-I/SN Frequently Asked Questions (FAQs)

  • The 24FC08T-I/SN has a maximum of 1 million write cycles, with a minimum of 100,000 write cycles guaranteed.
  • The 24FC08T-I/SN uses a page write buffer to handle page writes. The buffer is 16 bytes long, and the device can perform a page write in 5ms (typical) or 10ms (maximum).
  • The WP (Write Protect) pin is used to prevent writes to the entire memory array or to specific blocks of memory. When the WP pin is tied to VCC, the entire memory array is write-protected. When the WP pin is tied to GND, the memory array is not write-protected.
  • The 24FC08T-I/SN has a built-in power-on reset (POR) circuit that resets the device when power is applied. During power-down, the device automatically goes into a low-power standby mode to conserve power.
  • The 24FC08T-I/SN operates over a voltage range of 1.7V to 5.5V, making it suitable for use in a wide range of applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

24FC08T-I/SN Overview

Use the download button to access the 24FC08T-I/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 24FC0, or try a keyword search, such as EEPROMs
