The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 10mm x 10mm, and ensuring a solid copper pour on the top and bottom layers. Additionally, it's recommended to use thermal vias to connect the thermal pad to the bottom layer.
To ensure reliable operation in high-vibration environments, it's recommended to use a secure mounting method, such as screwing or adhesive mounting, and to ensure that the device is properly secured to the PCB. Additionally, consider using a vibration-dampening material, such as a silicone adhesive, to reduce the impact of vibrations on the device.
The maximum allowable temperature for storage and transportation of the 24S24.6HEW is 40°C to 125°C. It's essential to follow proper storage and transportation guidelines to prevent damage to the device.
The 24S24.6HEW is designed to operate in a relative humidity range of 5% to 95%. However, it's recommended to take precautions to prevent moisture ingress, such as using a conformal coating or potting the device, to ensure reliable operation in humid environments.
The recommended soldering profile for the 24S24.6HEW involves a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. It's essential to follow a controlled soldering process to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
24S24.6HEW Overview

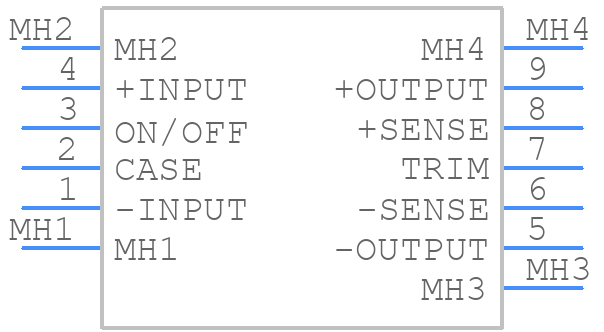

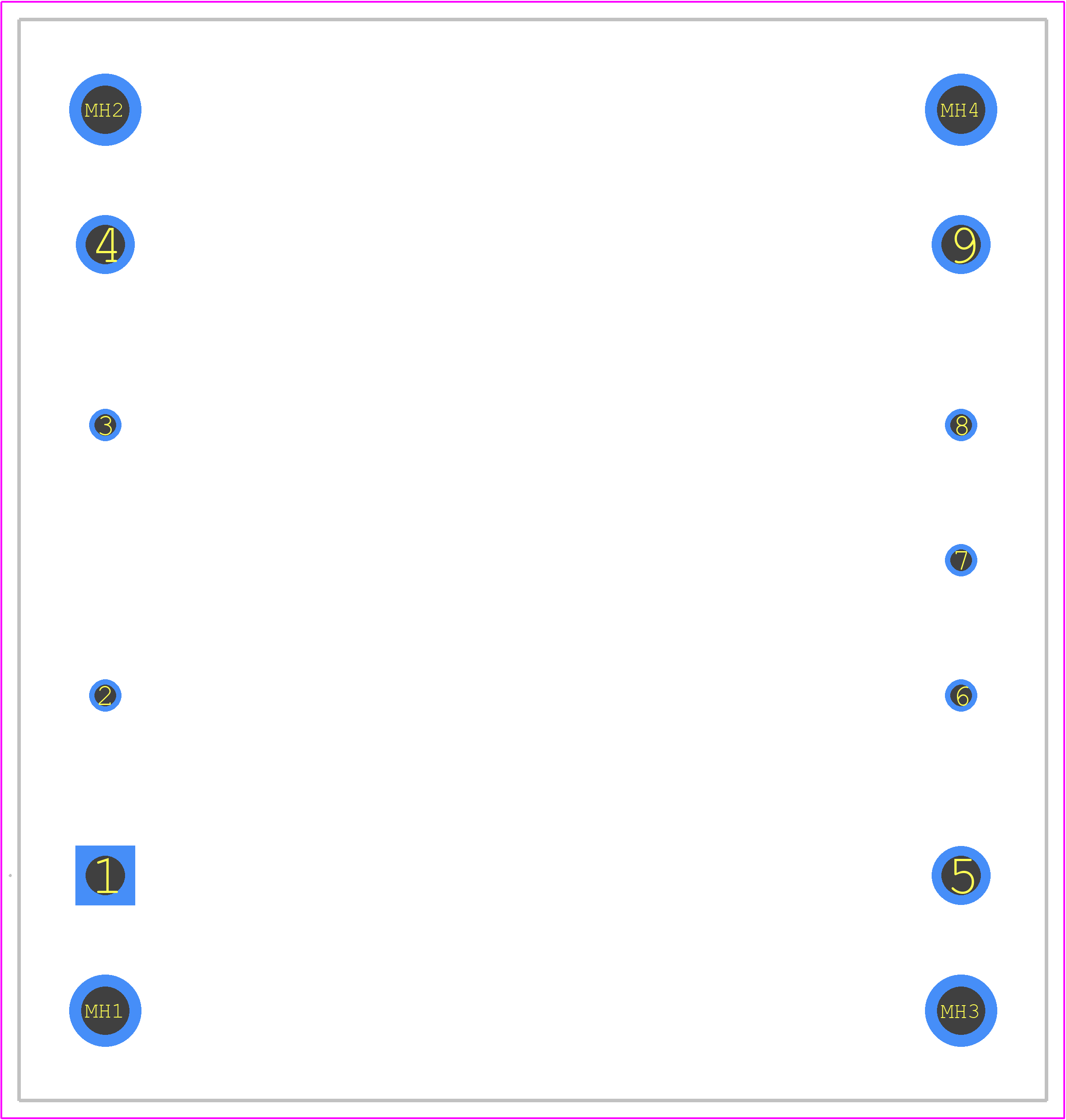

Use the download button to access the 24S24.6HEW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 24S24,
or try a keyword search, such as Power Supply Modules
