250-208 - Wago

Description: WAGO - 250-208. - TERMINAL BLOCK, WIRE TO BRD, 8POS, 16AWG

Download 250-208 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
250-208 - Wago - PCB symbol
click to zoom
PCB Footprints

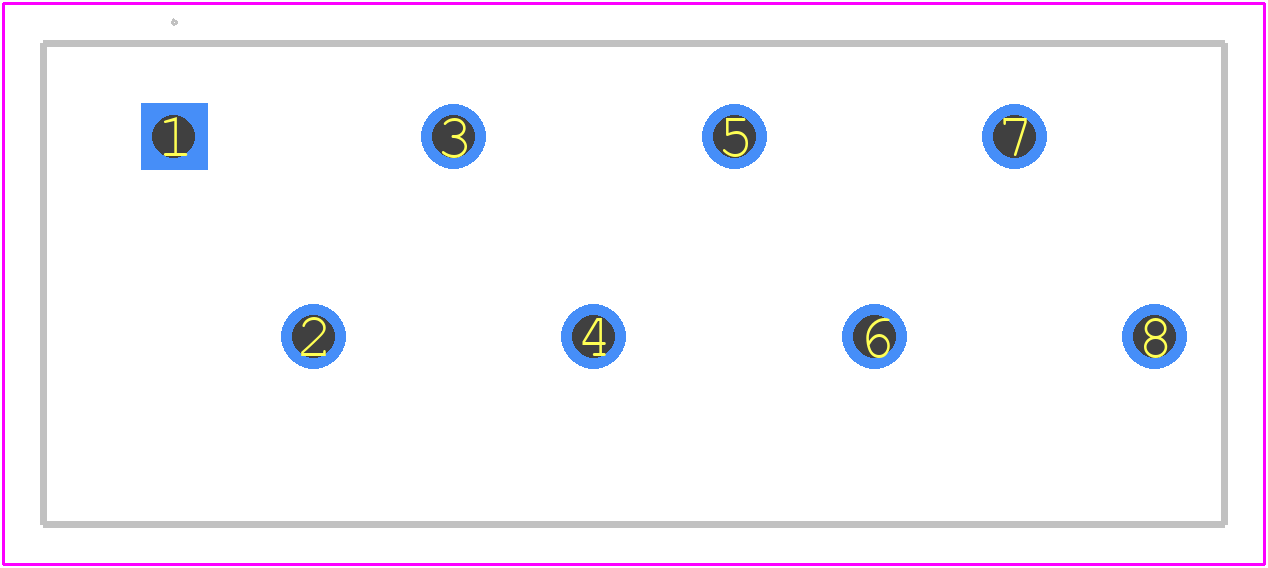

250-208 - Wago PCB footprint - Other - Other - 250-208/000-005-2
click to zoom
3D Models
250-208 - Wago - 3D model - Other - 250-208/000-005-2
click to zoom

250-208 Details

  • Manufacturer Part Number:

    250-208

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    PUSH BUTTON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    ABS;CCA;CSA;DNV;IEC;GL;UL;VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

250-208 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 250-208 connector is 0.6 Nm to 1.2 Nm (5-10 lbf-in).
  • Yes, the 250-208 connector is designed to withstand high-vibration environments and is suitable for use in applications with vibration levels up to 10g.
  • While the 250-208 connector is optimized for use with AWG 24-18 wires, it can also be used with smaller wire sizes (e.g., AWG 20-22) with the use of adapters or specialized wire preparation.
  • To ensure reliable connections, make sure to follow proper termination procedures, including stripping the wire to the correct length, inserting the wire into the connector, and tightening the screw to the recommended torque.
  • The 250-208 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and humidity levels, making it suitable for use in harsh environments.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

250-208 Overview

Use the download button to access the 250-208 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 250-2, or try a keyword search, such as Terminals and Terminal Blocks
