Technical Content
Part Image

250-210 - Wago

Description: emale 10 Pole 10 Way PCB Terminal Strip, PCB Mount, Rated At 10 (CSA) A, 5 (UL) A, 8 (IEC/EN 60664-1)

Download 250-210 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
250-210 - Wago - PCB symbol
click to zoom
PCB Footprints

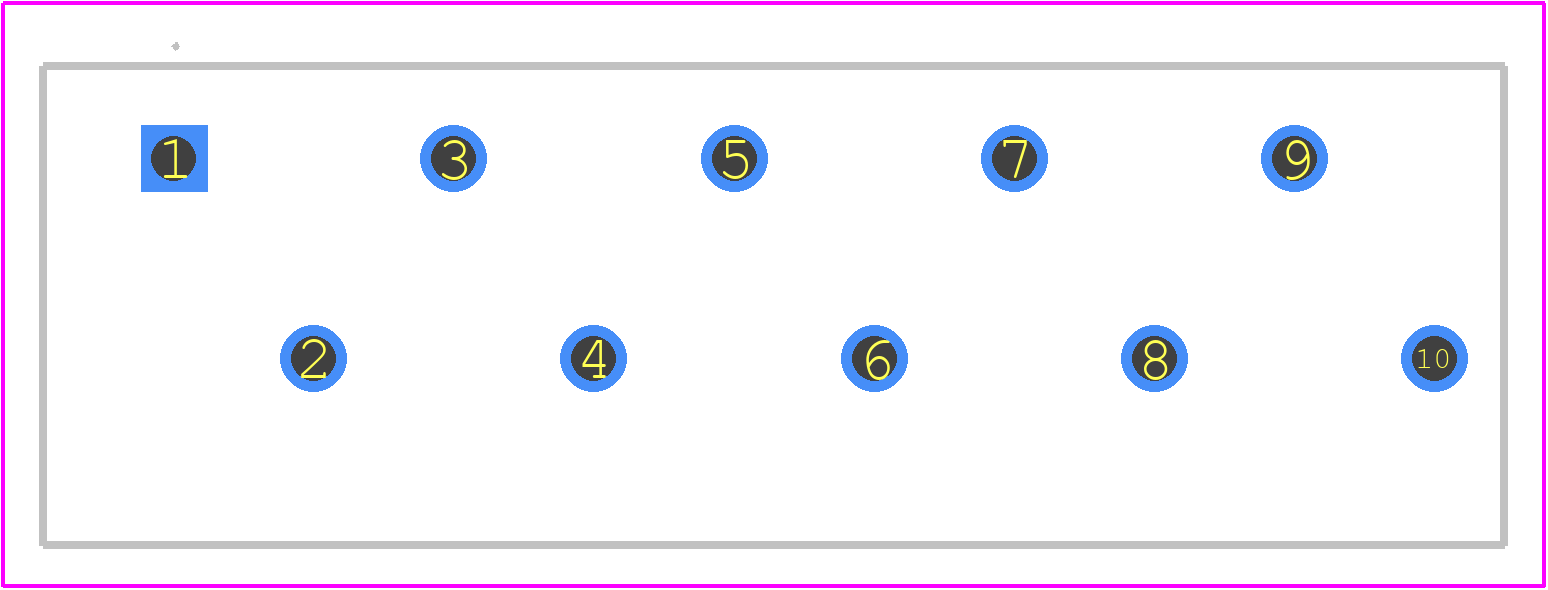

250-210 - Wago PCB footprint - Other - Other - 250-210/000-012-1
click to zoom
3D Models
250-210 - Wago - 3D model - Other - 250-210/000-012-1
click to zoom

250-210 Details

  • Manufacturer Part Number:

    250-210

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    PUSH BUTTON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    ABS;CCA;CSA;DNV;IEC;GL;UL;VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

250-210 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 250-210 connector is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs).
  • Yes, the 250-210 connector is designed for use in harsh environments and meets the requirements of IP67 and IP69K, making it suitable for use in applications exposed to dust, water, and high temperatures.
  • Yes, the 250-210 connector is suitable for power applications up to 10 A and 250 V, making it suitable for use in industrial control systems, robotics, and other power-hungry applications.
  • Yes, the 250-210 connector is designed to be compatible with other WAGO products, including their TOPJOB S and XCOM series of connectors and terminals.
  • The operating temperature range of the 250-210 connector is -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

250-210 Overview

Use the download button to access the 250-210 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 250-2, or try a keyword search, such as Terminals and Terminal Blocks
