250-710 - Wago

Description: Double-deck PCB terminal block; push-button; 1.5 mm²; Pin spacing 5 mm; 20-pole; Push-in CAGE CLAMP®

Download 250-710 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
250-710 - Wago - PCB symbol
click to zoom
PCB Footprints

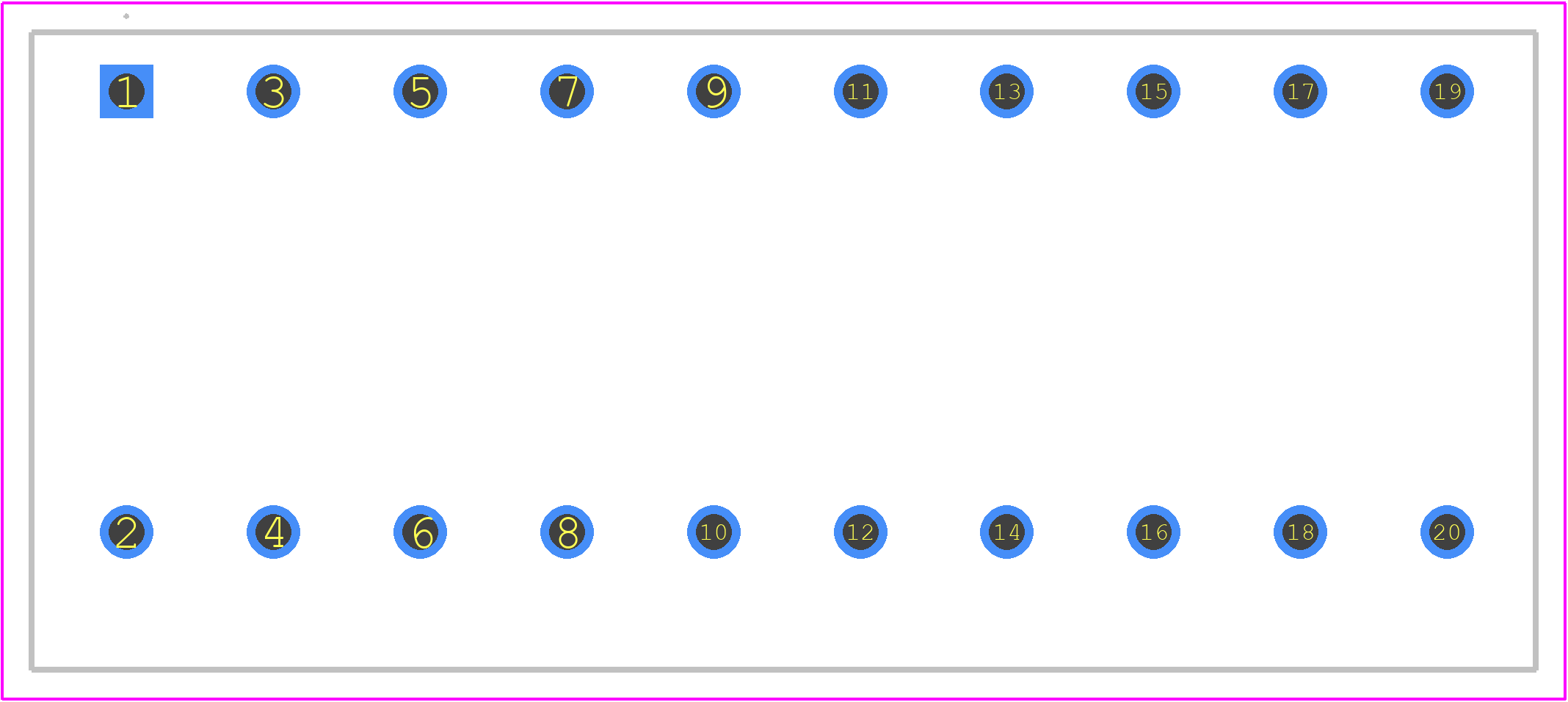

250-710 - Wago PCB footprint - Other - Other - 250-710-1
click to zoom
3D Models
250-710 - Wago - 3D model - Other - 250-710-1
click to zoom

250-710 Details

  • Manufacturer Part Number:

    250-710

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    PUSH BUTTON

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    20

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    ABS;CCA;CSA;DNV;IEC;GL;UL;VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

250-710 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw connections is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 250-710 connector is designed to operate in harsh environments, including high temperatures, humidity, and vibration. However, it's essential to follow the recommended installation and operating guidelines to ensure reliable performance.
  • The maximum wire size that can be used with the 250-710 connector is 2.5 mm² (AWG 14). Using larger wire sizes may compromise the connector's performance and reliability.
  • The 250-710 connector is rated for up to 1000 V AC/DC, making it suitable for high-voltage applications. However, it's crucial to follow the recommended installation and operating guidelines to ensure safe and reliable operation.
  • The 250-710 connector is not designed for use in explosive atmospheres. If you need a connector for hazardous locations, you should consider WAGO's ATEX-certified products or consult with a WAGO representative for guidance.
