250-716 - Wago

Description: Double-deck PCB terminal block; push-button; 1.5 mm²; Pin spacing 5 mm; 32-pole; Push-in CAGE CLAMP®

Download 250-716 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
250-716 - Wago - PCB symbol
click to zoom
PCB Footprints

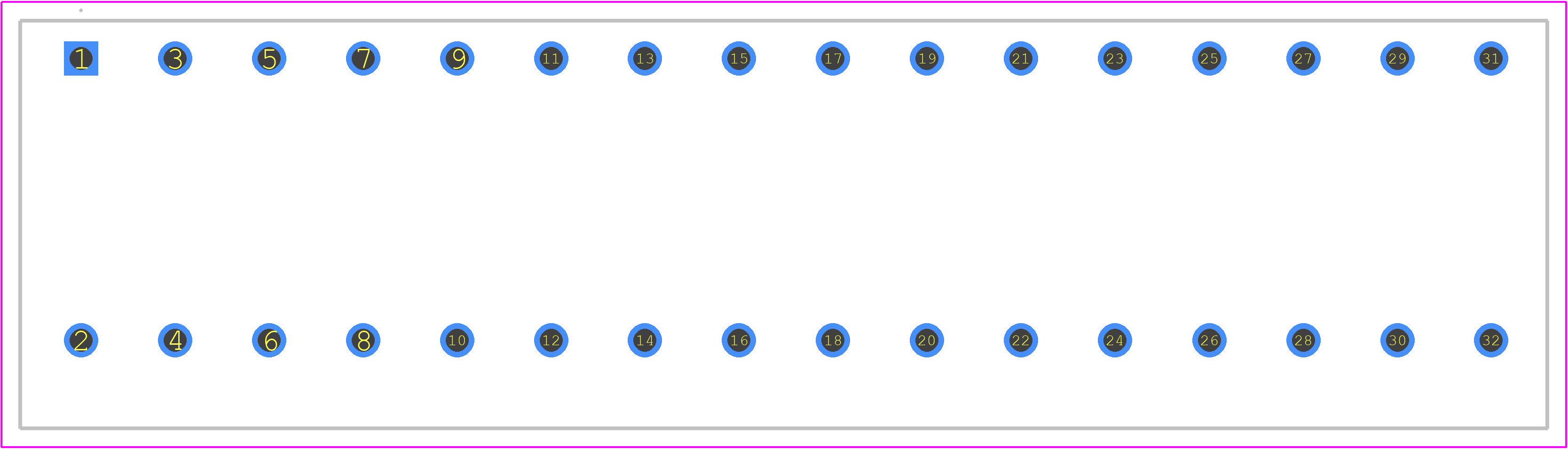

250-716 - Wago PCB footprint - Other - Other - 250-716-1
click to zoom
3D Models
250-716 - Wago - 3D model - Other - 250-716-1
click to zoom

250-716 Details

  • Manufacturer Part Number:

    250-716

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6

  • Additional Feature:

    STANDARD: 94V-0, POLYAMIDE66, SAFETY APPROVAL: UL; VDE

  • Fastening Method:

    PUSH-IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    32

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CCA; CSA; EN; IEC; KEMA; KEUR

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG
