250MXG220MEFCSN20X25 - Rubycon

Description: Rubycon 220μF 250 V dc Aluminium Electrolytic Capacitor, MXG Series 3000h 20 Dia. x 25mm

Download 250MXG220MEFCSN20X25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
250MXG220MEFCSN20X25 - Rubycon - PCB symbol
click to zoom
PCB Footprints

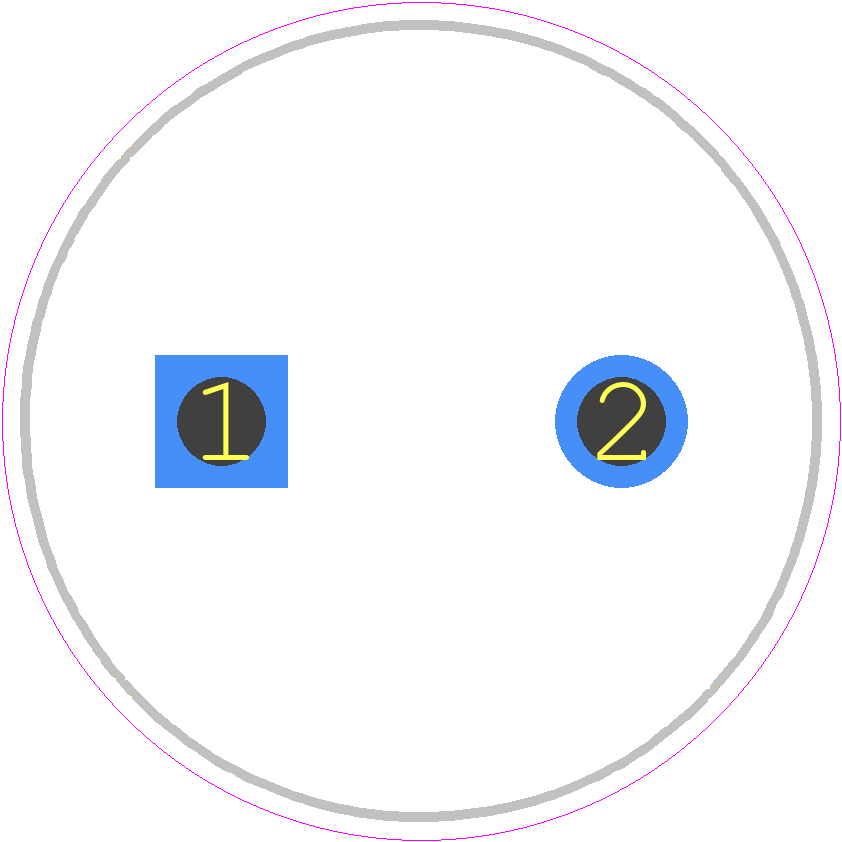

250MXG220MEFCSN20X25 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 250MXG220MEFCSN20X25
click to zoom
3D Models
250MXG220MEFCSN20X25 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 250MXG220MEFCSN20X25
click to zoom

250MXG220MEFCSN20X25 Details

  • Manufacturer Part Number:

    250MXG220MEFCSN20X25

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    20 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.70356 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    1170 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    SNAP-IN

250MXG220MEFCSN20X25 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 250MXG220MEFCSN20X25 capacitor is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 250MXG220MEFCSN20X25 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The derating curve for the 250MXG220MEFCSN20X25 capacitor is typically provided by Rubycon Corporation upon request. It shows the recommended voltage derating as a function of temperature to ensure reliable operation.
  • The 250MXG220MEFCSN20X25 capacitor is designed to withstand moderate vibration levels. However, for high-vibration applications, it's recommended to consult with Rubycon Corporation or perform additional testing to ensure the capacitor's reliability.
  • The ESR of the 250MXG220MEFCSN20X25 capacitor is typically around 0.02 ohms at 100 kHz. However, this value may vary depending on the frequency and operating conditions.
