250MXG680MEFCSN25X40 - Rubycon

Description: 680 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C , -25°C ~ 105°C

Download 250MXG680MEFCSN25X40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
250MXG680MEFCSN25X40 - Rubycon - PCB symbol
click to zoom
PCB Footprints

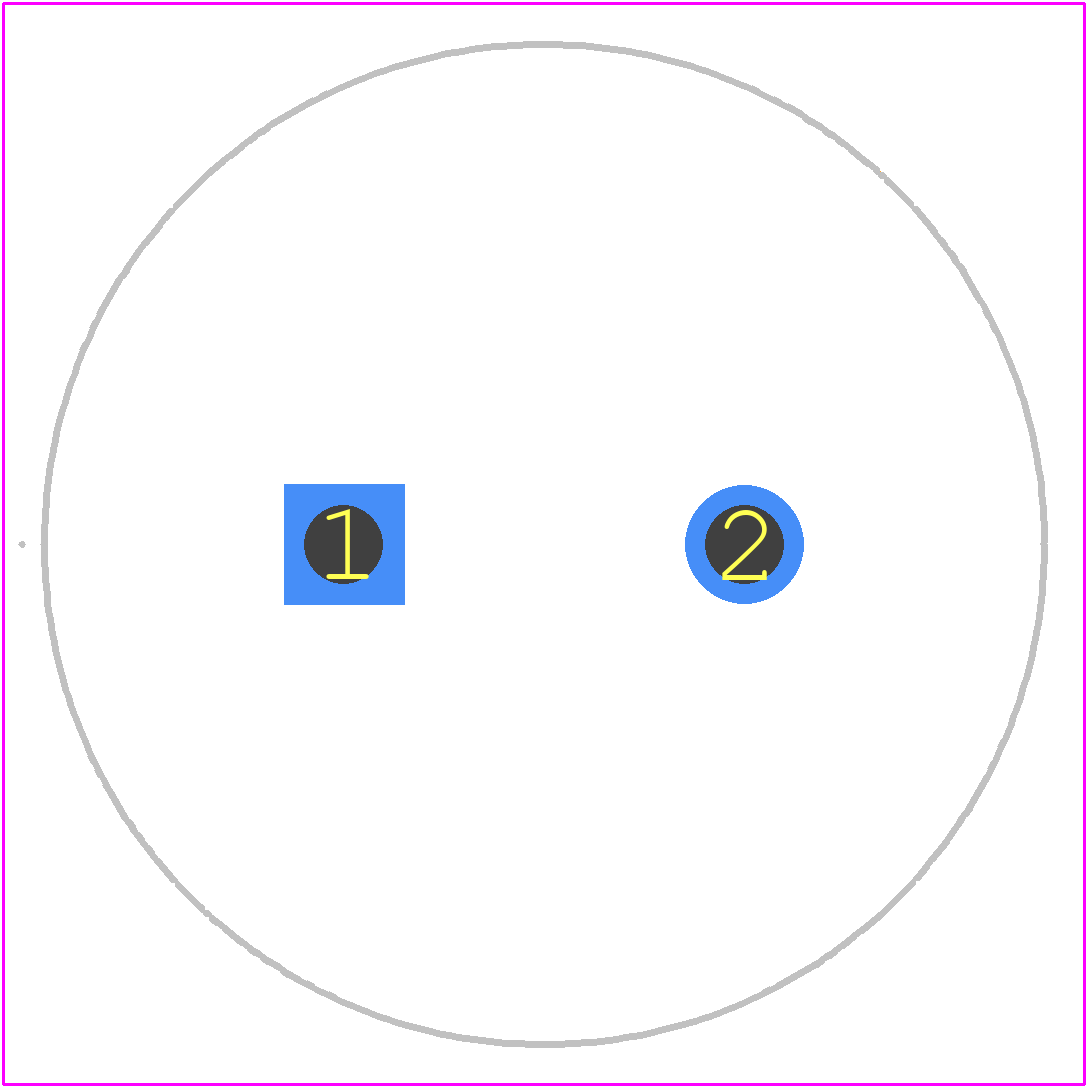

250MXG680MEFCSN25X40 - Rubycon PCB footprint - Other - Other - 25mm x 40mm_2026-1.1
click to zoom
3D Models
250MXG680MEFCSN25X40 - Rubycon - 3D model - Other - 25mm x 40mm_2026-1.1
click to zoom

250MXG680MEFCSN25X40 Details

  • Manufacturer Part Number:

    250MXG680MEFCSN25X40

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    680 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.23693 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    2200 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    SNAP-IN

250MXG680MEFCSN25X40 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 250MXG680MEFCSN25X40 is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the 250MXG680MEFCSN25X40 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The derating curve for the 250MXG680MEFCSN25X40 can be found in Rubycon's application notes or by contacting their technical support directly. Generally, it's recommended to derate the capacitor's voltage rating by 10-20% for every 10°C above the maximum operating temperature.
  • The 250MXG680MEFCSN25X40 is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult Rubycon's technical support or consider using a capacitor with specific vibration-resistant features.
  • The ESR of the 250MXG680MEFCSN25X40 is not explicitly stated in the datasheet. However, Rubycon provides ESR data in their technical notes or upon request. Typically, the ESR for this capacitor is around 0.02 ohms at 100 kHz.
