251PMILF - Renesas Electronics

Description: The IDT251 is a low cost, single-output, field programmable clock synthesizer. The IDT251 can generate an output frequency from 314 kHz to 200 MHz and may employ Spread Spectrum techniques to reduce system electro-magnetic interference (EMI). Using IDT's VersaClock™ software to configure the PLL and output, the IDT251 contains a One-Time Programmable (OTP) ROM to allow field programmability. Programming features include 4 selectable configuration registers. The device employs Phase-Locked Loop (PLL) techniq

Download 251PMILF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

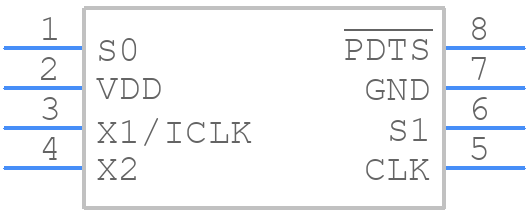

251PMILF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
251PMILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin SOIC
click to zoom
3D Models
251PMILF - Renesas Electronics - 3D model - Small Outline Packages - 8-pin SOIC
click to zoom

251PMILF Details

  • Manufacturer Part Number:

    251PMILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    200 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    150 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    3.45 V

  • Supply Voltage-Min:

    3.15 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

251PMILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP61101) which includes thermal vias, thermal pads, and heat sink design considerations to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions and trigger a shutdown or warning signal. The datasheet provides guidelines for selecting the current sense resistor value.
  • According to Renesas, the maximum allowed voltage on the VCC pin during power-up and power-down sequences is 7V. Exceeding this voltage may cause damage to the device.
  • Renesas provides EMC design guidelines in their application note (AP61102) which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference and ensure compliance with relevant standards.
  • The recommended operating temperature range for the 251PMILF is -40°C to 125°C. However, the device can operate up to 150°C with derating. Consult the datasheet for detailed thermal derating information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

251PMILF Overview

Use the download button to access the 251PMILF schematic symbol, PCB footprint, and 3D model.
