254123-E - TE Connectivity

Description: Receptacle, Board-to-Board, 160 Position, 2.54 mm [.1 in] Centerline, Printed Circuit Board, 5 Row, Vertical, 32 Column, Eurocard Connectors

Download 254123-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
254123-E - TE Connectivity - PCB symbol
click to zoom

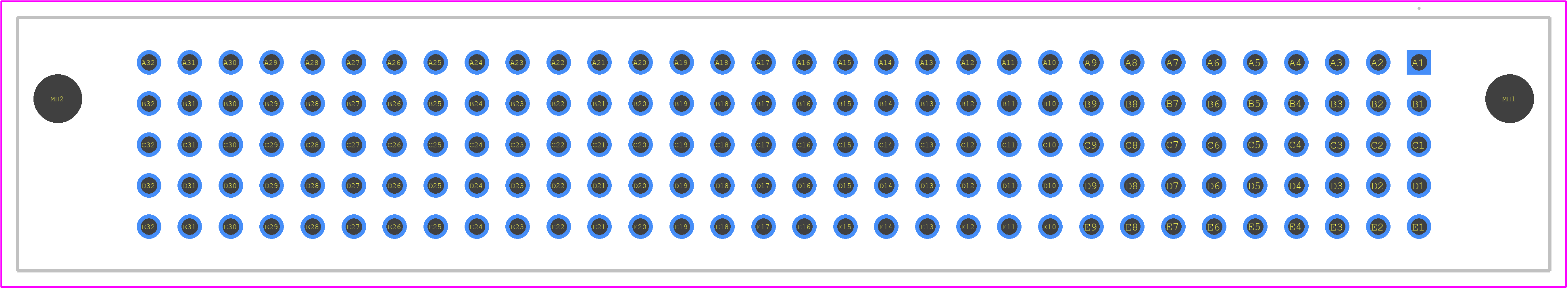

PCB Footprints
254123-E - TE Connectivity PCB footprint - Other - Other - 254123-E-2
click to zoom
3D Models
254123-E - TE Connectivity - 3D model - Other - 254123-E-2
click to zoom

254123-E Details

  • Manufacturer Part Number:

    254123-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    34 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: IEC-60603-2, DIN 41612

  • Body Breadth:

    0.618 inch

  • Body Depth:

    0.457 inch

  • Body Length:

    3.74 inch

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    YES

  • Dielectric Withstanding Voltage:

    2200VAC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000 Ω

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Name of Rows Loaded:

    A,B,C,D,E

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    5

  • Number of Rows Loaded:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    5.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.157 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    160

  • UL Flammability Code:

    94V-0

254123-E Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals of the 254123-E connector is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 254123-E connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate reliably in applications with vibrations up to 15 g (147 m/s²) in the frequency range of 10-200 Hz.
  • The 254123-E connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the temperature rating may vary depending on the specific application and the materials used in the connector.
  • The 254123-E connector is designed to operate in harsh environments. It has a IP67 rating, which means it can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. Additionally, it's resistant to many chemicals, including fuels, oils, and cleaning agents. However, it's always recommended to consult the datasheet and perform testing to ensure compatibility with specific environmental conditions.
  • The 254123-E connector is designed for signal transmission and is suitable for applications with data transmission rates up to 1 Gbps. However, for higher-speed applications, it's recommended to consult the datasheet and perform testing to ensure the connector meets the specific requirements.
