Part Image

255-507/333-006 - Wago

Description: PCB terminal block; push-button; 2.5 mm²; Pin spacing 7.5/7.62 mm; 7-pole; suitable for Ex-i applications; CAGE CLAMP®; commoning option

Download 255-507/333-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

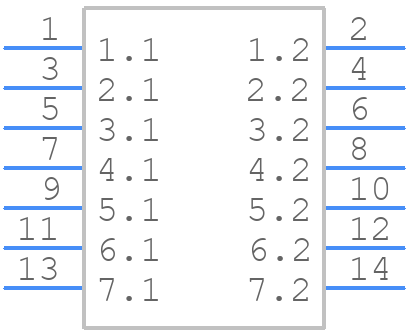

255-507/333-006 - Wago - PCB symbol
click to zoom
PCB Footprints

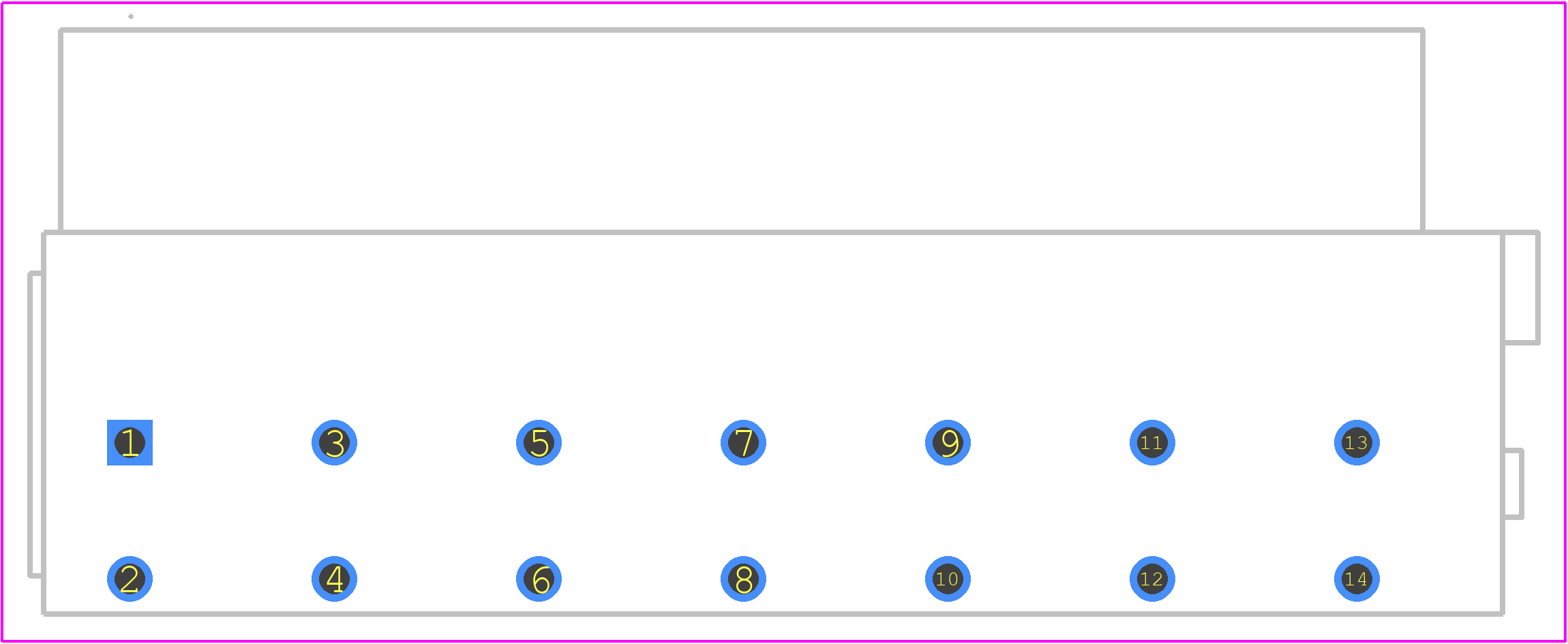

255-507/333-006 - Wago PCB footprint - Other - Other - 255-507/333-000-1
click to zoom
3D Models
255-507/333-006 - Wago - 3D model - Other - 255-507/333-000-1
click to zoom

255-507/333-006 Details

  • Manufacturer Part Number:

    255-507/333-006

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

255-507/333-006 Overview

Use the download button to access the 255-507/333-006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 255-5, or try a keyword search, such as Terminals and Terminal Blocks
