256-406 - Wago

Description: PCB terminal block; push-button; 2.5 mm²; Pin spacing 5/5.08 mm; 6-pole; CAGE CLAMP®; commoning option

Download 256-406 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

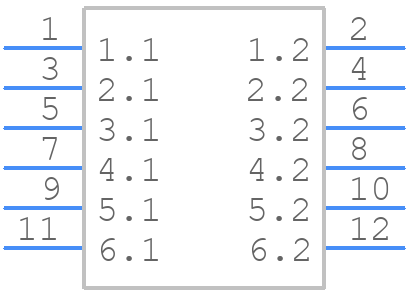

256-406 - Wago - PCB symbol
click to zoom
PCB Footprints

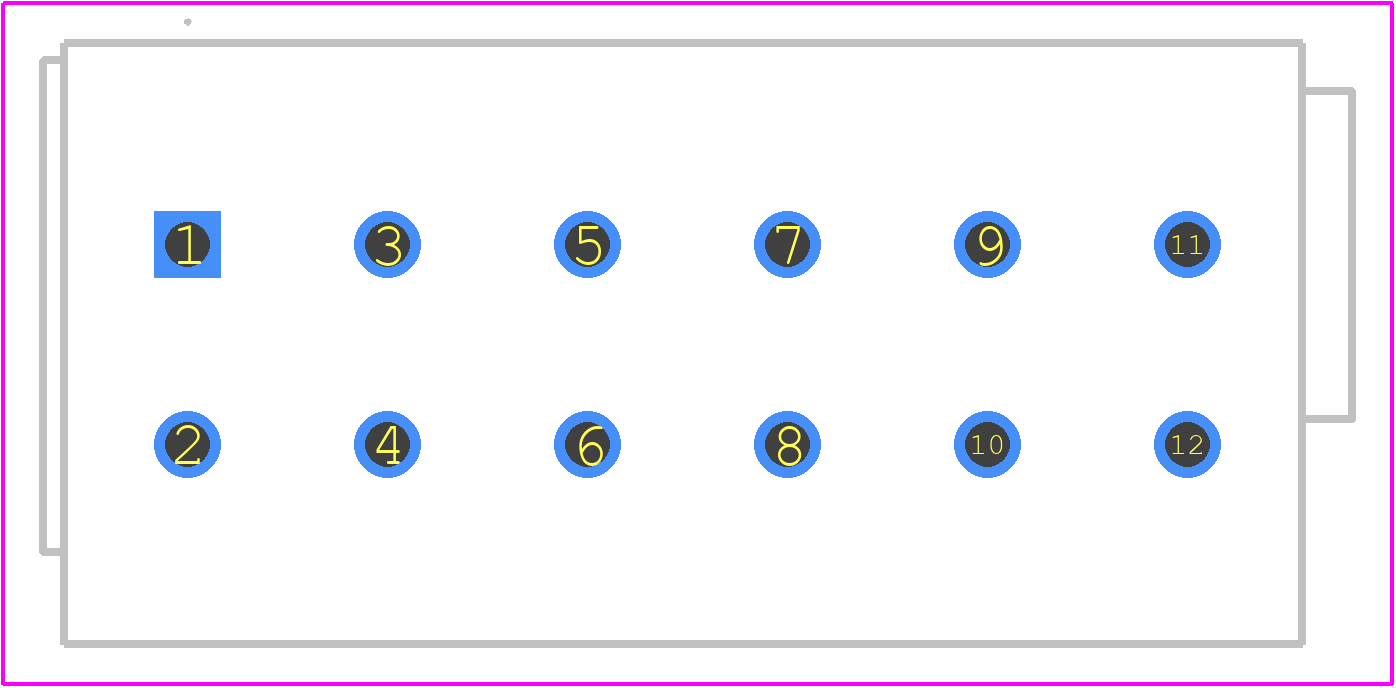

256-406 - Wago PCB footprint - Other - Other - 256-406-2
click to zoom
3D Models
256-406 - Wago - 3D model - Other - 256-406-2
click to zoom

256-406 Details

  • Manufacturer Part Number:

    256-406

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6.81

  • Additional Feature:

    CAGE CLAMP

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

256-406 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 256-406 connector is 0.6 Nm to 1.2 Nm (5-10 lbf-in).
  • Yes, the 256-406 connector is designed to withstand high-vibration environments and is suitable for use in applications with vibration levels up to 10g.
  • Yes, the 256-406 connector is designed for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures.
  • No, the 256-406 connector is specifically designed for use with 24-14 AWG wire sizes. Using wire sizes outside of this range may affect the connector's performance and reliability.
  • Yes, the 256-406 connector is compatible with other WAGO connectors and can be used in conjunction with them to create custom connector solutions.
