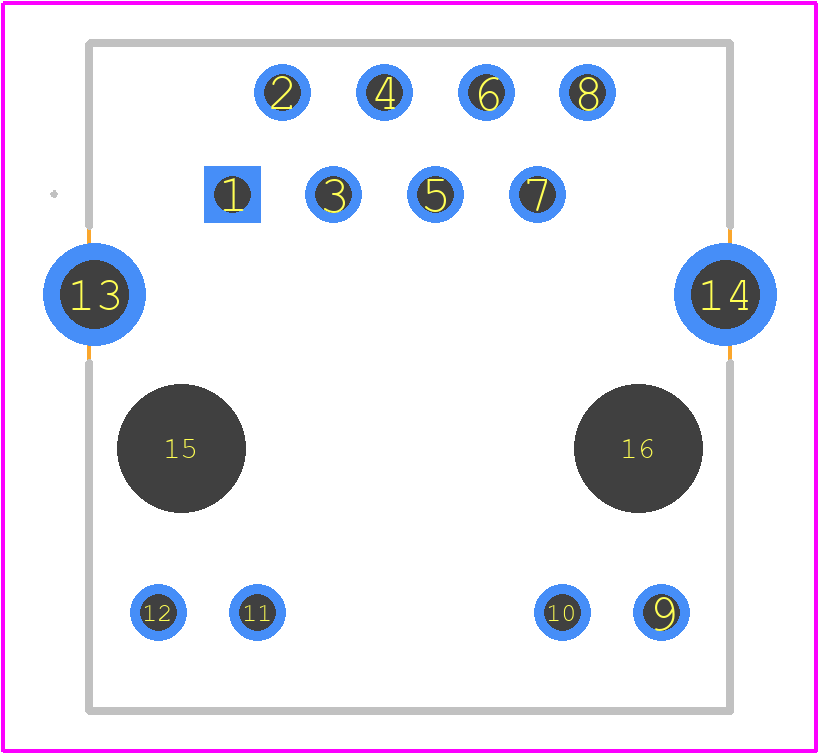

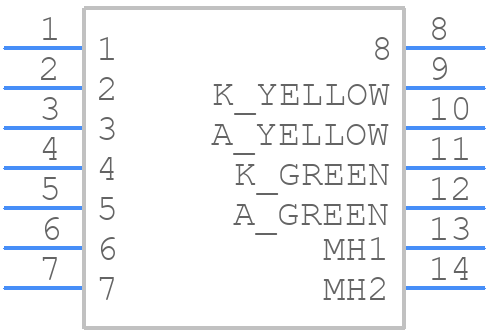

2562960000 footprint, schematic symbol and 3D model by Weidmüller

3D Models

click to zoom

Note! To download footprints and symbols, use the build and request forms below

Build

Package Category Launch Build Wizard

Request (48 hours)

Datasheet Download Datasheet
Stock & Prices Price & Stock for 2562960000
Part Number 2562960000
Manufacturer Weidmüller
Pin Count 14
Part Category Connector
Package Category Other
Last Modified Date Feb 3, 2026 1:43 PM UTC
Pinout / Pin List Click Here (Member Only)

2562960000 Details

Manufacturer Part Number:
2562960000
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Weidmüller Interface GmbH & Co. KG
Connector Type:
USB CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
Contact Material:
NOT SPECIFIED
JESD-609 Code:
e4

Trust Checks

Trust Score Unavailable

2562960000 Overview

Use the download button to access the 2562960000 3D model. You can still request or build the schematic symbol and PCB footprint by using the respective build or request forms on this page.

To find more CAD model downloads similar to this part, try a partial part number search, like 25629, or try a keyword search, such as Telecom and Datacom Connectors
