25AA010A-I/MS - Microchip

Description: 1K, 128 X 8, 1.8V SER EEPROM IND

Download 25AA010A-I/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

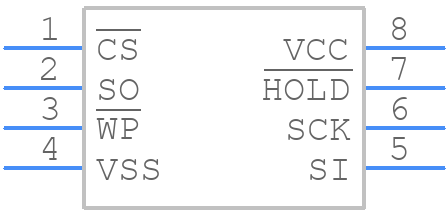

Symbol
25AA010A-I/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
25AA010A-I/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD PLASTIC MICRO SMALL OUTLINE PACKAGE (MS) [MSOP]
click to zoom
3D Models
25AA010A-I/MS - Microchip - 3D model - Small Outline Packages - 8-LEAD PLASTIC MICRO SMALL OUTLINE PACKAGE (MS) [MSOP]
click to zoom

25AA010A-I/MS Details

  • Manufacturer Part Number:

    25AA010A-I/MS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES 1.8V TO 2.5V @3MHZ

  • Clock Frequency-Max (fCLK):

    10 MHz

  • Data Retention Time-Min:

    200

  • Endurance:

    1000000 Write/Erase Cycles

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Memory Density:

    1024 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    8

  • Number of Words:

    128 words

  • Number of Words Code:

    128

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128X8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000001 A

  • Supply Current-Max:

    0.005 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    HARDWARE

25AA010A-I/MS Frequently Asked Questions (FAQs)

  • The 25AA010A-I/MS has a maximum of 1 million write cycles, with a minimum of 100,000 write cycles guaranteed.
  • The 25AA010A-I/MS uses a page write buffer to handle page writes. The buffer is 16 bytes long, and the device can perform a page write in 5ms (typical) or 10ms (maximum).
  • The WP (Write Protect) pin is used to prevent writes to the entire memory array or a specific block of memory. When the WP pin is tied to VCC, the entire memory array is write-protected. When the WP pin is tied to a specific block's WP pin, only that block is write-protected.
  • The 25AA010A-I/MS has a power-on reset circuit that ensures the device is in a known state after power-up. During power-down, the device automatically goes into a low-power standby mode to conserve power.
  • The 25AA010A-I/MS operates over a voltage range of 1.8V to 5.5V, making it suitable for a wide range of applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

25AA010A-I/MS Overview

Use the download button to access the 25AA010A-I/MS schematic symbol, PCB footprint, and 3D model.
