25LC080DT-E/MNY - Microchip

Description: EEPROM 8K 1K X 8 32B PAGE 2.5V SER EE EXT

Download 25LC080DT-E/MNY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

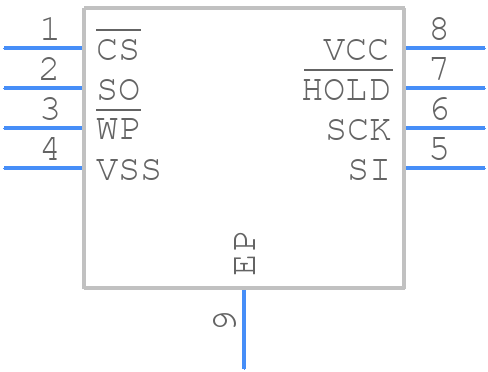

Symbol
25LC080DT-E/MNY - Microchip - PCB symbol
click to zoom
PCB Footprints
25LC080DT-E/MNY - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Plastic Dual Flat, No Lead Package (MN) – 2x3x0.8 mm Body [TDFN] D E D2 E2 A (A3) A1 e 8X b L K W
click to zoom
3D Models
25LC080DT-E/MNY - Microchip - 3D model - Small Outline No-lead - 8-Lead Plastic Dual Flat, No Lead Package (MN) – 2x3x0.8 mm Body [TDFN] D E D2 E2 A (A3) A1 e 8X b L K W
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for 25LC080DT-E/MNY
  • Part Number 25LC080DT-E/MNY
  • Manufacturer Microchip
  • Pin Count 9
  • Part Category Integrated Circuit
  • Package Category Small Outline No-lead
  • Footprint Name Small Outline No-lead - 8-Lead Plastic Dual Flat, No Lead Package (MN) – 2x3x0.8 mm Body [TDFN] D E D2 E2 A (A3) A1 e 8X b L K W
  • Released Date Nov 8, 2023
  • Last Modified Date Nov 8, 2023 8:30 AM UTC
  • Pinout / Pin List Click Here (Member Only)

25LC080DT-E/MNY Details

  • Manufacturer Part Number:

    25LC080DT-E/MNY

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    TDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Additional Feature:

    OPERATES WITH 2.5VMIN @ 5MHZ

  • Clock Frequency-Max (fCLK):

    10 MHz

  • Data Retention Time-Min:

    200

  • Endurance:

    1000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Memory Density:

    8192 bit

  • Memory IC Type:

    EEPROM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    8

  • Number of Words:

    1024 words

  • Number of Words Code:

    1000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Programming Voltage:

    5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000005 A

  • Supply Current-Max:

    0.005 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    2 mm

  • Write Cycle Time-Max (tWC):

    5 ms

  • Write Protection:

    HARDWARE/SOFTWARE

25LC080DT-E/MNY Frequently Asked Questions (FAQs)

  • The 25LC080DT-E/MNY has a maximum of 1,000,000 write cycles, with a minimum of 100,000 write cycles guaranteed.
  • The 25LC080DT-E/MNY uses a page write buffer to handle page writes. The buffer is 32 bytes, and the device can perform a page write in 5ms (typical) or 10ms (maximum).
  • The WP (Write Protect) pin is used to prevent writes to the status register and the memory array. When the WP pin is tied to VCC, the device is in write-protect mode, and when it is tied to GND, the device is in normal operation mode.
  • Yes, the 25LC080DT-E/MNY can be used in a multi-master environment, as it supports a multi-master bus interface. However, the user must ensure that the masters do not attempt to access the device simultaneously.
  • The minimum clock frequency for the 25LC080DT-E/MNY is 100 kHz.
