25SVPT100M - Panasonic

Description: Aluminium Organic Polymer Capacitors 25VDC 100uF 20% 3200mA 24mOhm

Download 25SVPT100M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
25SVPT100M - Panasonic - PCB symbol
click to zoom

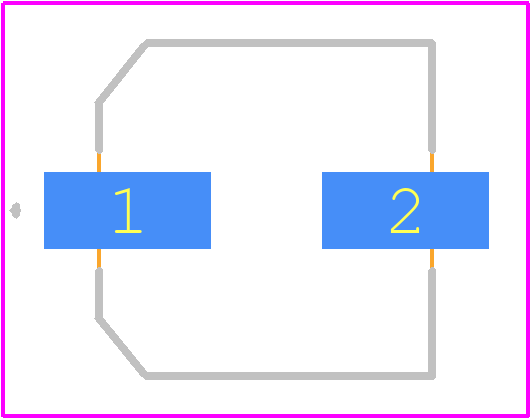

PCB Footprints
25SVPT100M - Panasonic PCB footprint - Other - Other - E7
click to zoom
3D Models
25SVPT100M - Panasonic - 3D model - Other - E7
click to zoom

25SVPT100M Details

  • Manufacturer Part Number:

    25SVPT100M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.35

  • Additional Feature:

    ESR IS MEASURED AT 100KHZ-300KHZ

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    24 mΩ

  • Height:

    6.9 mm

  • Leakage Current:

    0.5 mA

  • Length:

    8.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    160 mA

  • Size Code:

    3333

  • Surface Mount:

    YES

  • Tan Delta:

    0.12

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm

25SVPT100M Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 25SVPT100M is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the 25SVPT100M is suitable for high-frequency applications up to 1 GHz, but the impedance and ESR may vary depending on the frequency.
  • The 25SVPT100M is rated for operation up to 125°C, but the capacitance and ESR may degrade at high temperatures. Derating may be necessary for extended operation above 85°C.
  • Yes, the 25SVPT100M is compatible with lead-free soldering processes, but the recommended soldering temperature and time may vary depending on the specific process.
  • The recommended storage condition for the 25SVPT100M is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and humidity below 70%.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

25SVPT100M Overview

Use the download button to access the 25SVPT100M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 25SVP, or try a keyword search, such as Ceramic Capacitors
