- Part Number 260-4204-01
- Manufacturer 3M
- Pin Count 61
- Part Category Connector
- Package Category Other

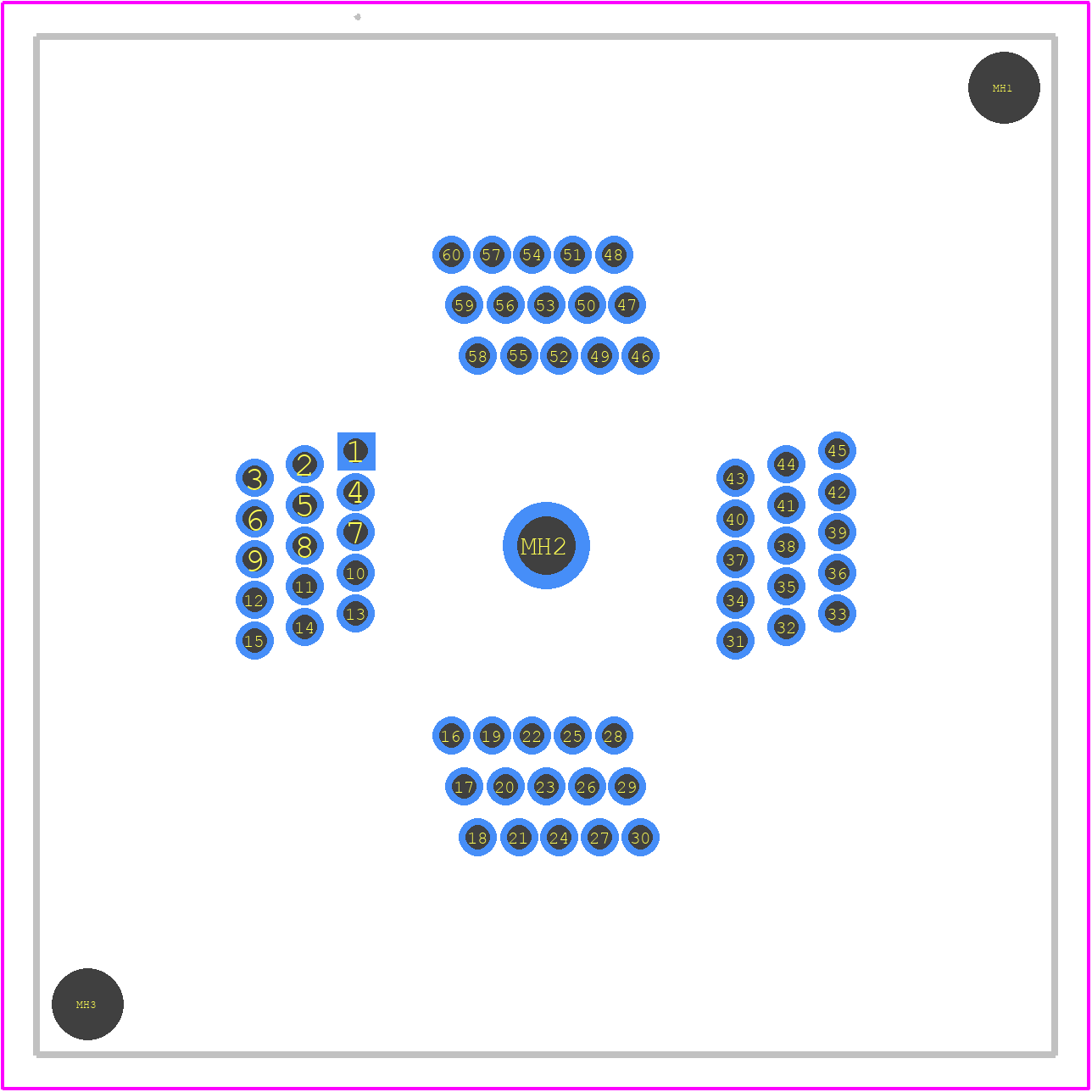

- Footprint Name Other - 260-4204-01-6
- Released Date Nov 6, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
260-4204-01 Details
-
Manufacturer Part Number:
260-4204-01
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
15 Weeks, 6 Days
-
Manufacturer:
3M Interconnect
-
YTEOL:
6.63
-
Body Breadth:
1.181 inch
-
Body Depth:
0.669 inch
-
Body Length:
1.181 inch
260-4204-01 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 260-4204-01 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
The 260-4204-01 connector has a rating of IP67, which means it can withstand temporary immersion in water and is protected against dust and other environmental factors. However, it's essential to follow proper sealing and installation procedures to maintain the connector's environmental rating.
-
While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with caution. However, using smaller or larger wire sizes may affect the connector's performance, reliability, and durability. It's recommended to consult with 3M Interconnect or a qualified engineer to determine the suitability of alternative wire sizes.
-
The 260-4204-01 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). Exceeding this temperature range may affect the connector's performance, reliability, and lifespan.
