2626620000 - Weidmüller

Description: OMNIMATE Data - D-SUB connector, male header, Hole, THT solder connection, Pitch in mm: 2.77 mm, Number of poles: 9, ≥ 50 µ" Ni / ≥ 1 µ" Au , PBT glass fibre reinforced UL 94 V-0, grey, Tray (manual assembly)

Download 2626620000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2626620000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

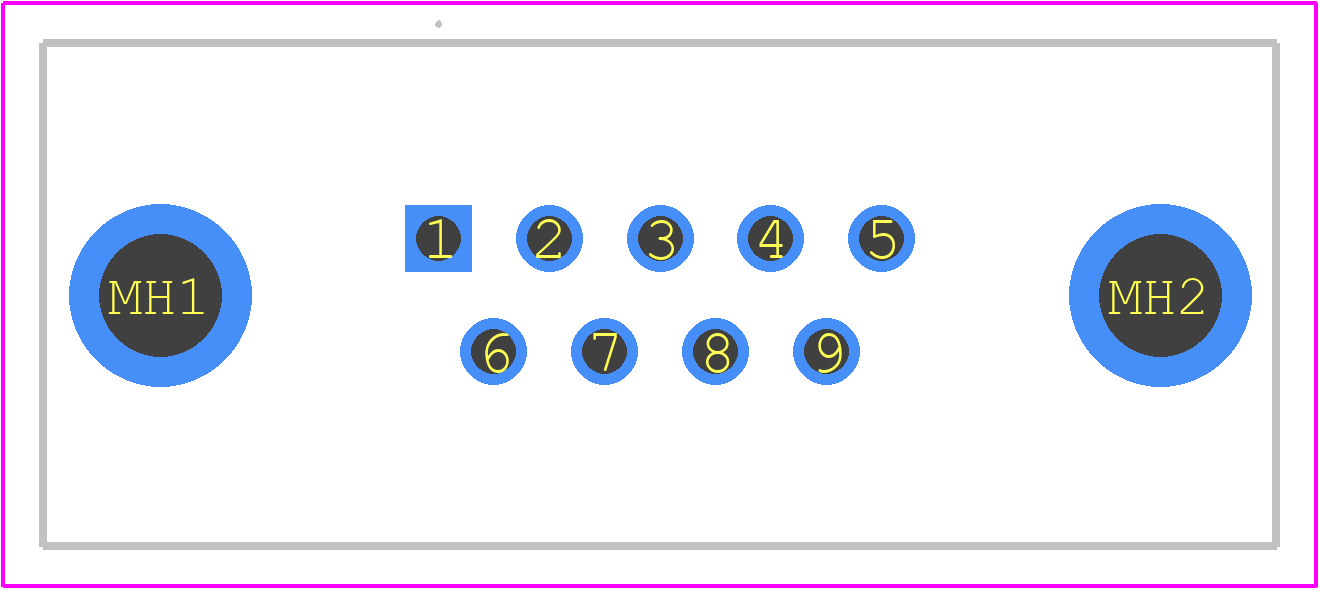

2626620000 - Weidmüller PCB footprint - Other - Other - 2626620000-2
click to zoom
3D Models
2626620000 - Weidmüller - 3D model - Other - 2626620000-2
click to zoom

2626620000 Details

  • Manufacturer Part Number:

    2626620000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    0

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2626620000 Overview

Use the download button to access the 2626620000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 26266, or try a keyword search, such as D Type Connectors
