2634590000 - Weidmüller

Description: PCB connector RJ45 modular jack, Cat. 6 , THT/THR solder connection, Shielding: Yes, LED: No, Gold over nickel, Tray (manual assembly)

Download 2634590000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2634590000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

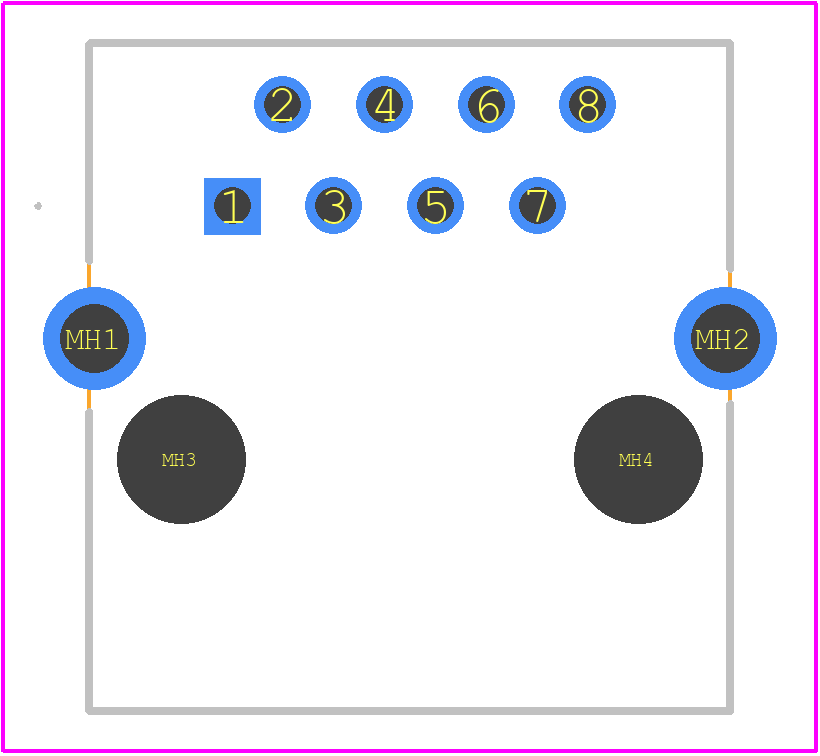

2634590000 - Weidmüller PCB footprint - Other - Other - 2634590000-3
click to zoom
3D Models
2634590000 - Weidmüller - 3D model - Other - 2634590000-3
click to zoom

2634590000 Details

  • Manufacturer Part Number:

    2634590000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • JESD-609 Code:

    e4

2634590000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 2634590000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 2634590000 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
  • The typical lead time for delivery of the 2634590000 varies depending on the region and availability, but it's usually around 2-4 weeks.
  • The 2634590000 is not designed for use in hazardous locations. It does not have any specific certifications for explosive atmospheres or intrinsic safety.
  • The recommended torque for the screw terminals on the 2634590000 is 0.5 Nm to 1.2 Nm, depending on the wire size and type.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2634590000 Overview

Use the download button to access the 2634590000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 26345, or try a keyword search, such as Telecom and Datacom Connectors
