2716-107 - Wago

Description: PCB Terminal Block, operating lever, 16 mm2, Pin spacing 10 mm, 7-pole, Cage Clamp

Download 2716-107 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

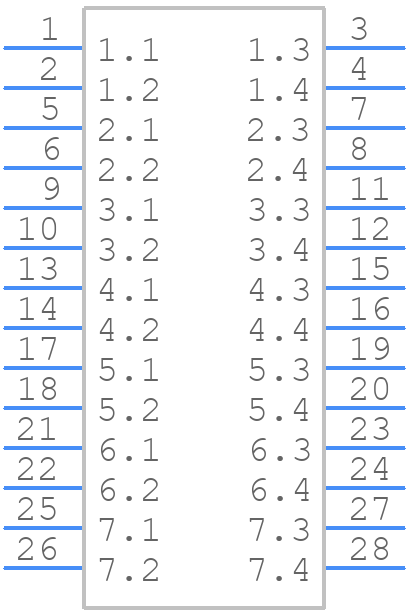

2716-107 - Wago - PCB symbol
click to zoom
PCB Footprints

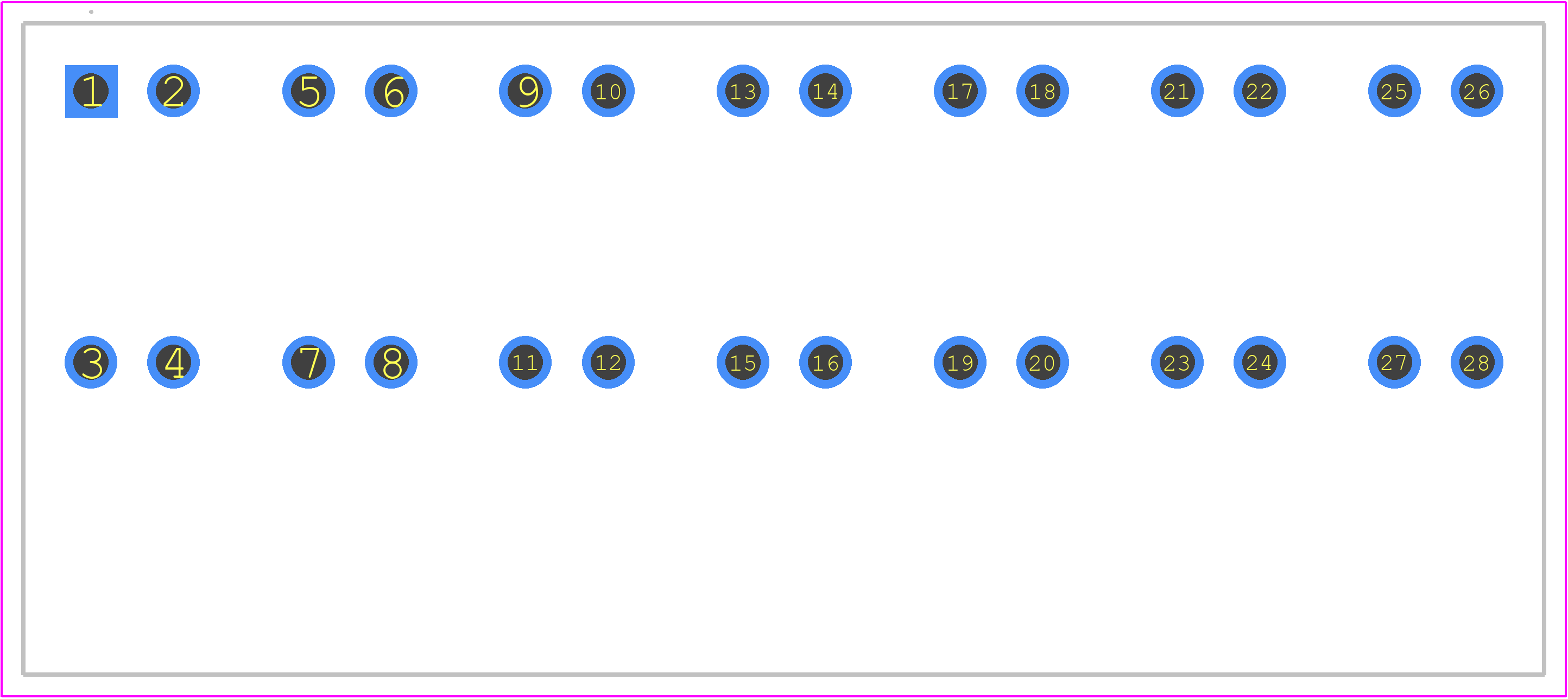

2716-107 - Wago PCB footprint - Other - Other - 2716-107-1
click to zoom
3D Models
2716-107 - Wago - 3D model - Other - 2716-107-1
click to zoom

2716-107 Details

  • Manufacturer Part Number:

    2716-107

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    76 A

  • Rated Voltage:

    4000 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    16 mm2

  • Wire Gauge:

    6 AWG

2716-107 Frequently Asked Questions (FAQs)

  • The recommended torque for screw termination is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs) according to WAGO's application notes.
  • Yes, the 2716-107 connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • Yes, the 2716-107 connector is designed to accept stranded wire with a wire size range of 0.5 mm² to 2.5 mm² (20 AWG to 14 AWG).
  • The operating temperature range of the 2716-107 connector is -40°C to 125°C (-40°F to 257°F) according to WAGO's specifications.
  • Yes, the 2716-107 connector is UL certified (UL 310) and meets the requirements for use in industrial control and automation applications.
