The recommended torque for screw termination is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs), as specified in the WAGO application notes.
Yes, the 2716-152 connector is suitable for outdoor use, as it has a rating of IP67, which means it is protected against dust and water ingress, and can withstand harsh environmental conditions.
Yes, the 2716-152 connector is designed to accept stranded wire, but it's recommended to use a wire with a minimum strand count of 30 to ensure reliable connections.
The maximum operating temperature for the 2716-152 connector is 85°C (185°F), as specified in the datasheet.
Yes, the 2716-152 connector is UL certified, which means it meets the safety standards set by Underwriters Laboratories, a leading safety science organization.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
2716-152 Overview

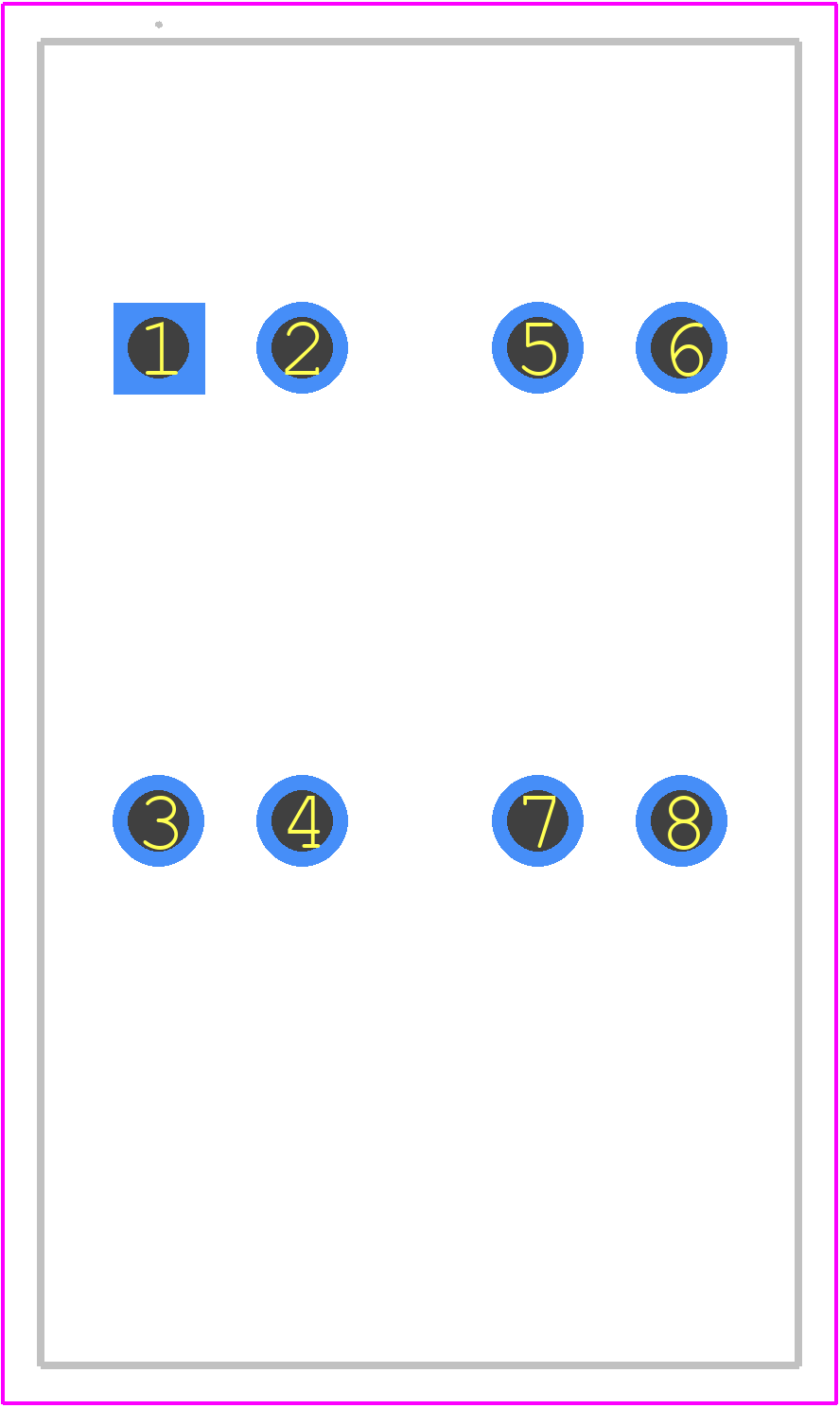

Use the download button to access the 2716-152 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 2716-,
or try a keyword search, such as Terminals and Terminal Blocks
