27E007 - TE Connectivity

Description: POTTER & BRUMFIELD - TE CONNECTIVITY - 27E007 - RELAY SOCKET

Download 27E007 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
27E007 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

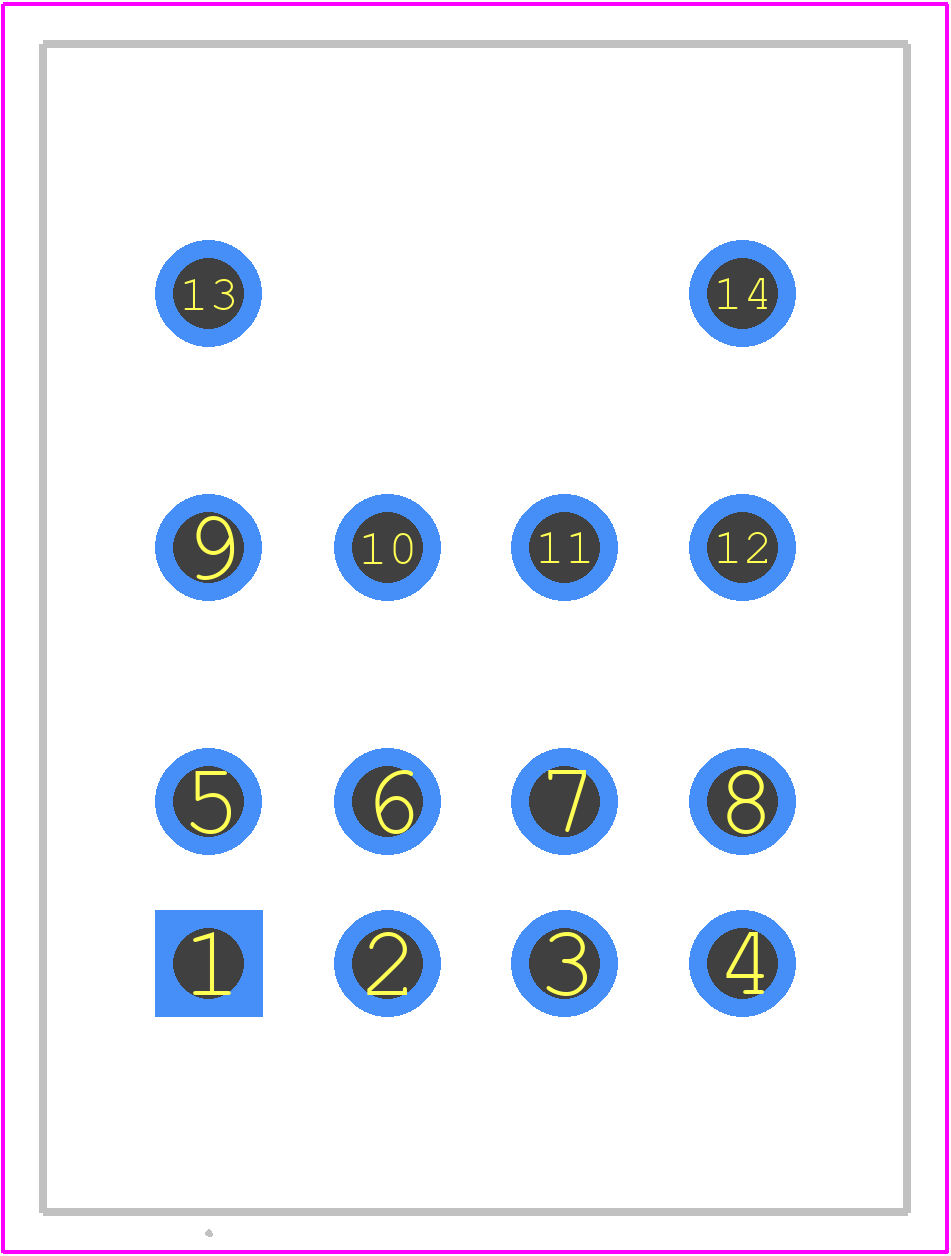

27E007 - TE Connectivity PCB footprint - Other - Other - 27E007-2
click to zoom
3D Models
27E007 - TE Connectivity - 3D model - Other - 27E007-2
click to zoom

27E007 Details

  • Manufacturer Part Number:

    27E007

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    STANDARDS: CSA; UL

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • Device Socket Type:

    IC SOCKET

  • Housing Material:

    NYLON

  • Number of Contacts:

    14

  • Termination Type:

    SOLDER

27E007 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm (5.3 in-lbs) for the screw terminals.
  • Yes, the 27E007 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and screw torque.
  • The maximum operating temperature range for the 27E007 is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 27E007 is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure reliable connections.
  • The 27E007 has a moisture sensitivity level (MSL) rating of 3, which means it can withstand humid or wet environments, but it's recommended to follow the manufacturer's guidelines for moisture protection and sealing.
