27PSB473KLB22N footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

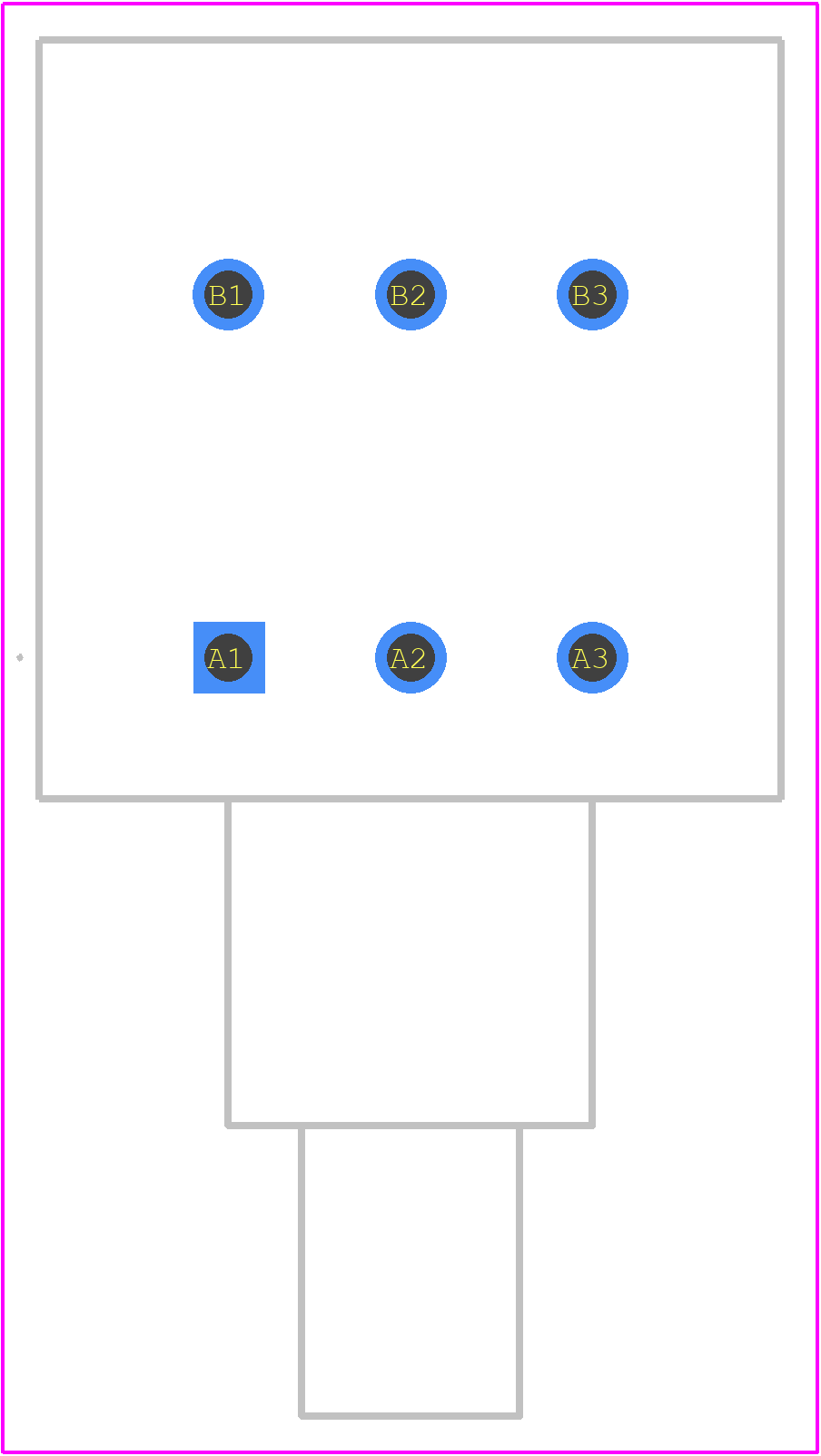

27PSB473KLB22N - TE Connectivity PCB footprint - Other - Other - 27PSB473KLB22N-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 27PSB473KLB22N
Part Number 27PSB473KLB22N
Manufacturer TE Connectivity
Pin Count 6
Part Category Variable Resistor
Package Category Other
Footprint Name Other - 27PSB473KLB22N-3
Released Date Jun 5, 2022
Last Modified Date Dec 15, 2024 9:56 PM UTC
Pinout / Pin List Click Here (Member Only)

27PSB473KLB22N Details

Manufacturer Part Number:
27PSB473KLB22N
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
Factory Lead Time:
23 Weeks, 5 Days
Manufacturer:
TE Connectivity
Actuator Orientation:
HORIZONTAL
Number of Turns:
1
Physical Dimension:
25.2mm x 20.4mm
Rated Power Dissipation (P):
0.4 W
Resistor Type:
POTENTIOMETER
Tolerance:
10%

Trust Checks

Community Provided

System Verified

Community Approved

27PSB473KLB22N Overview

Use the download button to access the 27PSB473KLB22N schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 27PSB, or try a keyword search, such as Variable Resistors
