28-3554-10 footprint, schematic symbol and 3D model by ARIES

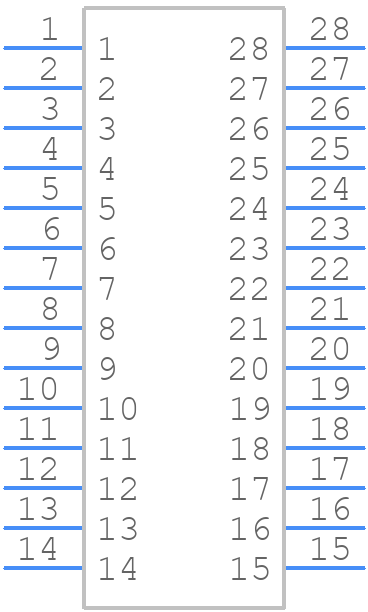

Symbol

click to zoom

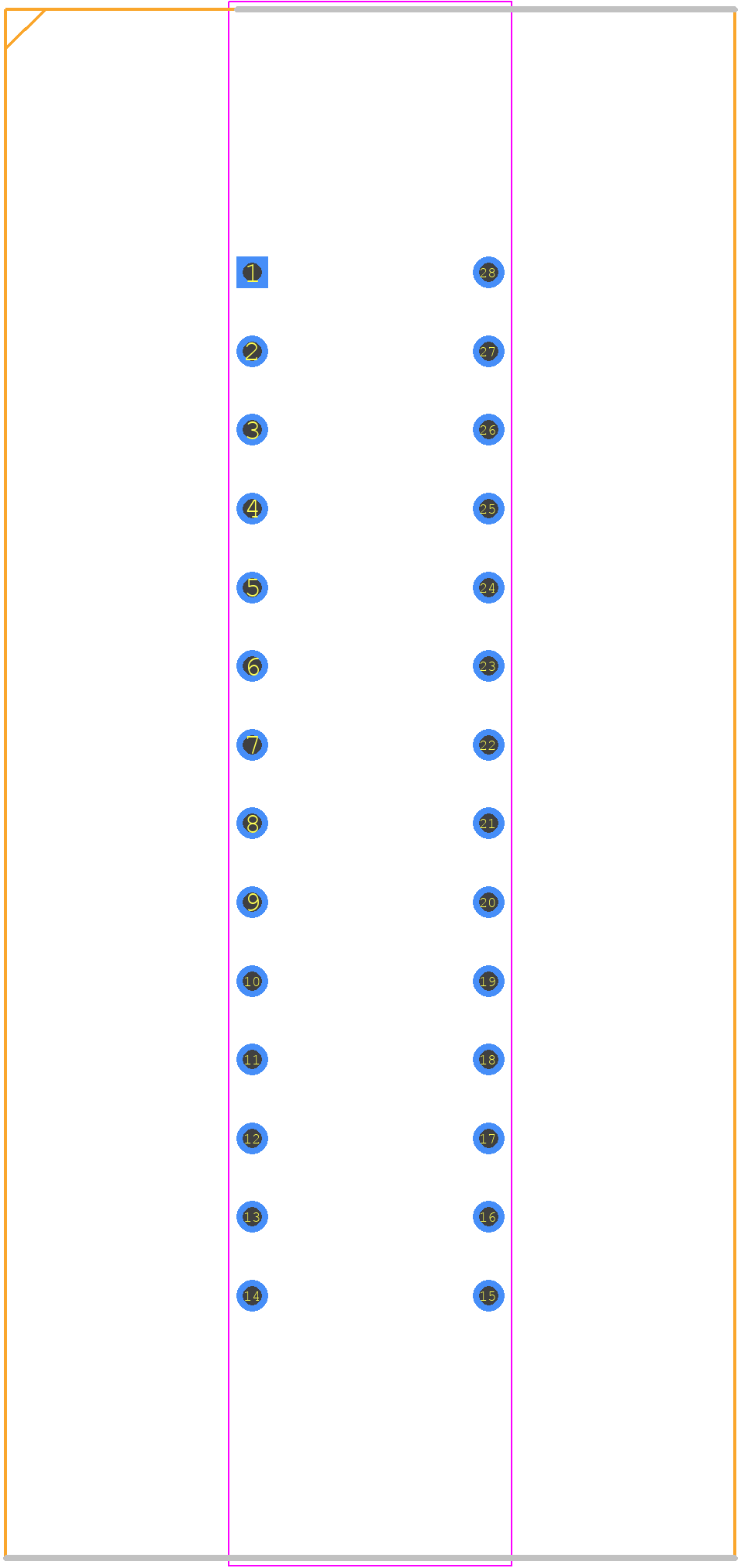

PCB Footprints

28-3554-10 - ARIES PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - Sockets DIP TEST SCKT TIN 28 PINS

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 28-3554-10
Part Number 28-3554-10
Manufacturer ARIES
Pin Count 28
Part Category Transistor E-mode GaN (3-Pin)
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - Sockets DIP TEST SCKT TIN 28 PINS
Pinout / Pin List Click Here (Member Only)

Trust Checks

System Verified

28-3554-10 Overview

Use the download button to access the 28-3554-10 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 28-35, or try a keyword search, such as Sockets and Chip Carriers
