28-526-11 - ARIES

Description: IC & Component Sockets Zero-Insertion-Force Socket, -55°C to 125°C, 2 amps, 10 MΩ max, BREAKDOWN VOLTAGE: 1000VAC min

Download 28-526-11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
28-526-11 - ARIES - PCB symbol
click to zoom
PCB Footprints

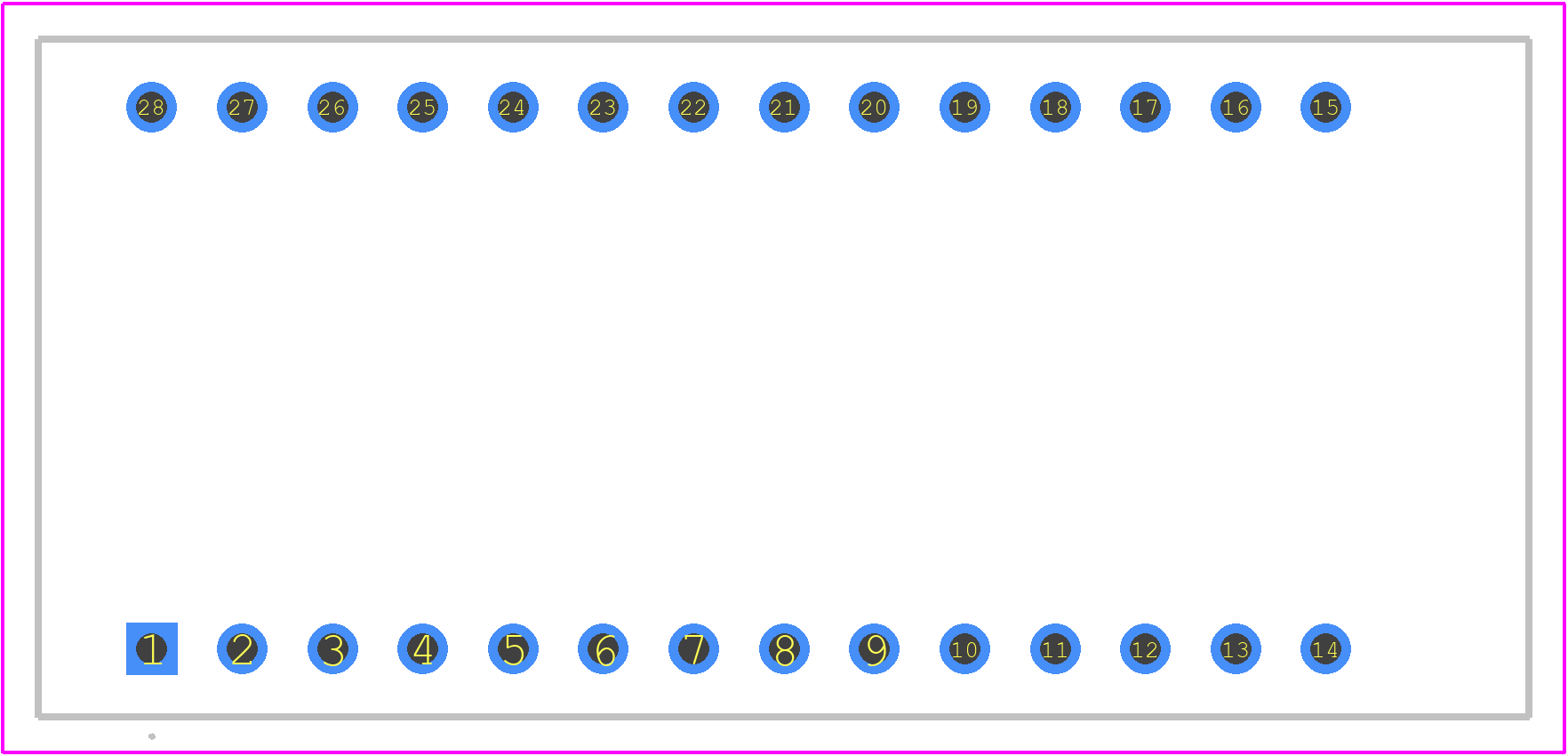

28-526-11 - ARIES PCB footprint - Other - Other - 28-526-11-2
click to zoom
3D Models
28-526-11 - ARIES - 3D model - Other - 28-526-11-2
click to zoom

28-526-11 Details

  • Manufacturer Part Number:

    28-526-11

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0, LOW PROFILE

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    BERYLLIUM COPPER

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP28

  • Housing Material:

    NYLON46

  • JESD-609 Code:

    e4

  • Number of Contacts:

    28

28-526-11 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections without damaging the terminals.
  • Yes, the 28-526-11 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
  • Yes, the 28-526-11 connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The operating temperature range for the 28-526-11 connector is -40°C to +125°C (-40°F to +257°F), making it suitable for use in a wide range of applications.
  • Yes, the 28-526-11 connector is designed to withstand harsh environments, including high humidity and exposure to chemicals. However, it's essential to follow proper cleaning and maintenance procedures to ensure the connector's reliability.
