28-C182-10 footprint, schematic symbol and 3D model by ARIES

Symbol

click to zoom

PCB Footprints

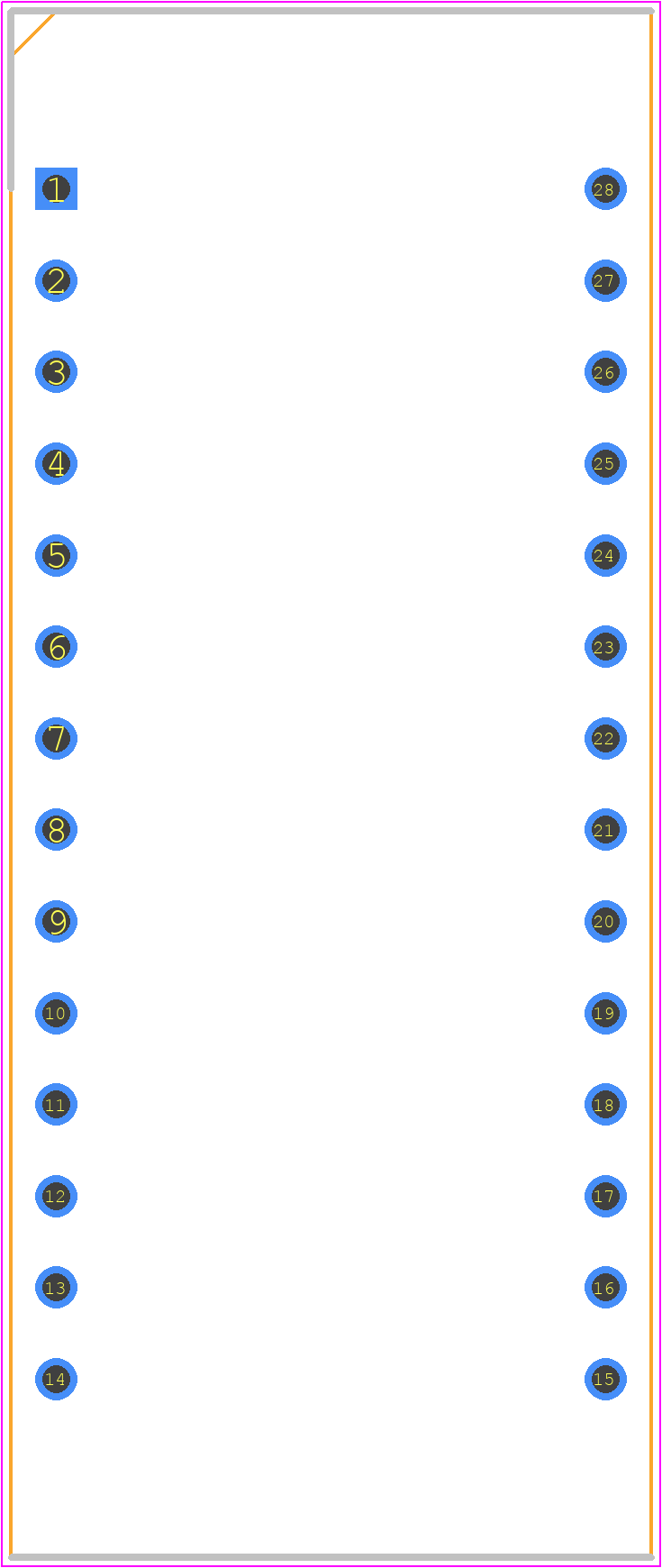

28-C182-10 - ARIES PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 28-C182-10

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 28-C182-10
Part Number 28-C182-10
Manufacturer ARIES
Pin Count 28
Part Category Integrated Circuit
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 28-C182-10
Released Date May 7, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

28-C182-10 Details

Manufacturer Part Number:
28-C182-10
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Aries Electronics Inc
YTEOL:
7.5
Additional Feature:
STANDARD: UL 94V-0
Body Breadth:
0.7 inch
Body Length:
1.69 inch
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Material:
BRASS
Contact Style:
RND PIN-SKT
Current Rating:
1 A
Device Socket Type:
IC SOCKET
Device Type Used On:
DIP28
Dielectric Withstanding Voltage:
1000VAC V
Housing Material:
NYLON46
Insulation Resistance:
1000000000 Ω
JESD-609 Code:
e3
Mating Contact Pitch:
0.1 inch
Mounting Style:
STRAIGHT
Number of Contacts:
28
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
0.6000000000000001 mm
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER

28-C182-10 Frequently Asked Questions (FAQs)

The recommended storage condition for the 28-C182-10 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of 20°C to 30°C (68°F to 86°F) and humidity below 60%.
Yes, the 28-C182-10 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the device to ensure reliable operation.
Yes, the 28-C182-10 is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure reliable connections.
The recommended cleaning process for the 28-C182-10 involves using a soft-bristled brush and a mild detergent solution to remove any debris or contaminants, followed by a dry nitrogen blow to remove any moisture.
The 28-C182-10 is designed to operate within a temperature range of -40°C to 85°C (-40°F to 185°F), but it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.

Trust Checks

Community Provided

System Verified

Community Approved

28-C182-10 Overview

Use the download button to access the 28-C182-10 schematic symbol and PCB footprint.
