282815-6 - TE Connectivity

Description: Body Features: Primary Product Color Green | Product Orientation Right Angle | Configuration Features: Stacking Configuration Side Stackable | Number of Rows 1 | Number of Positions 6 | Contact Features: Contact Base Material Copper Magnesium | Contact Current Rating (Max) 15 AMP | Contact Mating Area Plating Material Tin | Dimensions: Wire Size .05 – 3 MMSQ | Wire Size 30 – 12 AWG | Electrical Characteristics: Operating Voltage 300 VAC | Housing Features: Centerline (Pitch) .2 INCH | Centerline (Pitch)

Download 282815-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
282815-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

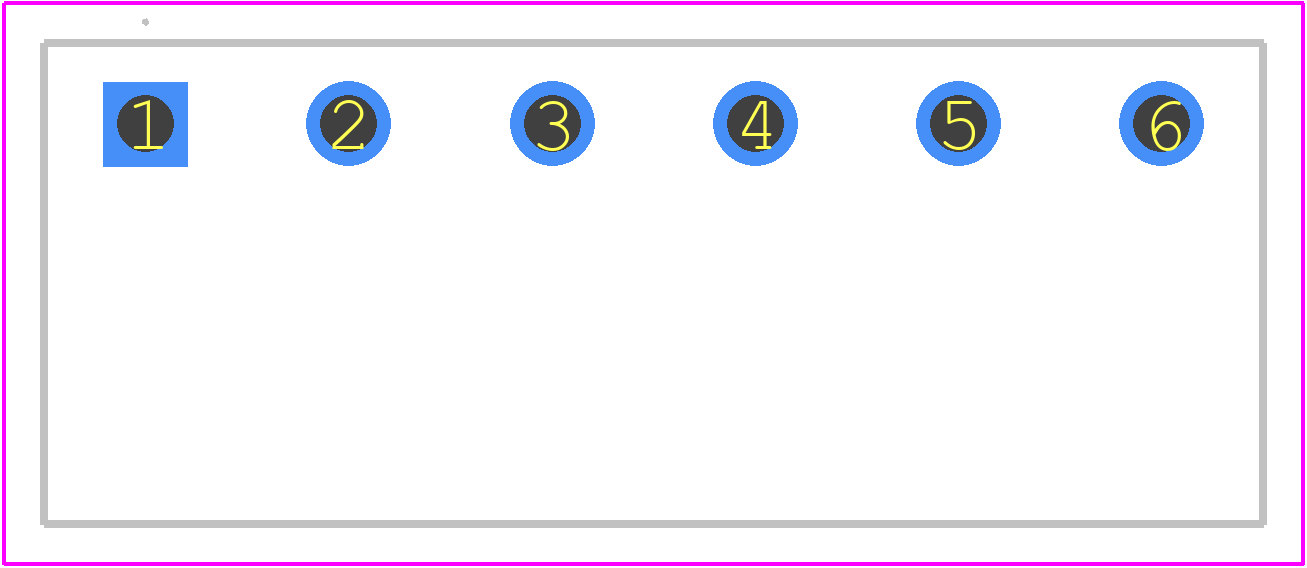

282815-6 - TE Connectivity PCB footprint - Other - Other - 282815-6-2
click to zoom
3D Models
282815-6 - TE Connectivity - 3D model - Other - 282815-6-2
click to zoom

282815-6 Details

  • Manufacturer Part Number:

    282815-6

  • Brand Name:

    Buchanan

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.75

  • Additional Feature:

    PA6-6, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

282815-6 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.2 in-lbs) according to TE Connectivity's application notes.
  • Yes, the 282815-6 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1, Class B standard for vibration resistance.
  • Yes, the 282815-6 connector is suitable for outdoor use. It has a IP67 rating, which means it can withstand exposure to dust and water immersion up to 1 meter for 30 minutes.
  • The operating temperature range for the 282815-6 connector is -40°C to 125°C (-40°F to 257°F) according to the datasheet.
  • It's not recommended to use a different wire gauge than specified in the datasheet. Using a wire gauge that is too small or too large can affect the connector's performance and reliability.
