Technical Content
Part Image

286-AB - Wakefield Thermal

Description: Heat Sinks Aluminum Low Cost Wave-Solderable Heat Sink for TO-220, Anodized, 25.4x12.7x30.2mm

Download 286-AB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
286-AB - Wakefield Thermal - PCB symbol
click to zoom
PCB Footprints

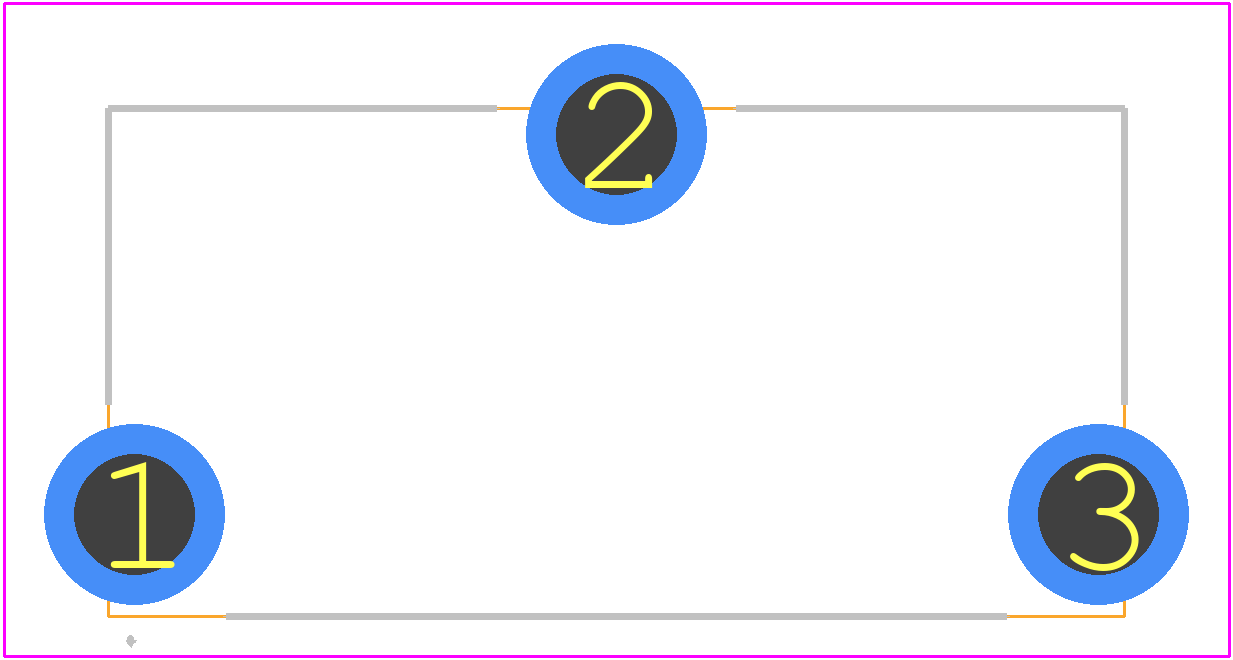

286-AB - Wakefield Thermal PCB footprint - Other - Other - 286-AB-1
click to zoom
3D Models
286-AB - Wakefield Thermal - 3D model - Other - 286-AB-1
click to zoom

286-AB Details

  • Manufacturer Part Number:

    286-AB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.90.00.00

  • Manufacturer:

    Wakefield-Vette

  • Body Material:

    ALUMINUM

  • Color:

    BLACK

  • Fin Orientation:

    TRANSVERSE

  • Finish:

    ANODIZED

  • Height:

    30.2 mm

  • Length:

    25.4 mm

  • Profile:

    U

  • Thermal Support Device Type:

    HEAT SINK

  • Weight:

    3.86 g

  • Width:

    12.7 mm

286-AB Frequently Asked Questions (FAQs)

  • The 286-AB can operate safely between -40°C to 125°C, but it's recommended to derate the power dissipation above 100°C to ensure reliability.
  • Yes, the 286-AB is designed to withstand high vibrations and can operate in environments with vibrations up to 10G peak acceleration.
  • The recommended torque specification for the mounting screws is 8-10 in-lbs (0.9-1.1 Nm) to ensure proper thermal interface and prevent damage to the device.
  • Yes, the 286-AB is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally conscious designs.
  • The typical thermal resistance (θja) of the 286-AB is around 1.5°C/W, but this can vary depending on the specific application and thermal management design.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

286-AB Overview

Use the download button to access the 286-AB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 286-A, or try a keyword search, such as Heat Sinks

About Wakefield Thermal

Wakefield Thermal provides thermal solutions for customers in aerospace, LED lighting, automation, consumer electronics, medical devices, renewable energy, telecommunications, and transportation. They manufacture thermal extrusions, LED head sinks, heat frames, and pipes, fans, heat exchangers, and coolant distribution units. Headquartered in Nashua, New Hampshire, Wakefield Thermal has manufacturing facilities in North America and Dongguan, China.
