Please enter a minimum 3 letters or numbers
Technical Content
Part Image

28F0121-1SR-10 - Laird Technologies

Description: 96 Ohms @ 100 MHz 1 Power Line Ferrite Bead 2-SMD, J-Lead 10A 1mOhm , 10A , -40°C ~ 125°C

Download 28F0121-1SR-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
28F0121-1SR-10 - Laird Technologies - PCB symbol
click to zoom

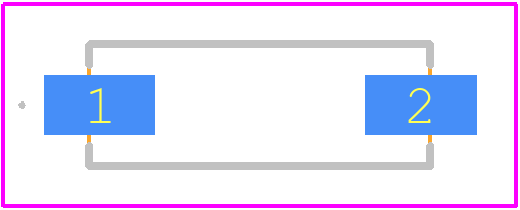

PCB Footprints
28F0121-1SR-10 - Laird Technologies PCB footprint - Other - Other - 2-SMD_2025-1.1
click to zoom
3D Models
28F0121-1SR-10 - Laird Technologies - 3D model - Other - 2-SMD_2025-1.1
click to zoom

28F0121-1SR-10 Details

  • Manufacturer Part Number:

    28F0121-1SR-10

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Qnity Laird

  • YTEOL:

    7

  • Case Code:

    3312

  • Construction:

    Chip Bead

  • DC Resistance-Max:

    0.001 Ω

  • Filter Type:

    DATA LINE FILTER

  • Frequency-Max:

    833 MHz

  • Frequency-Min:

    25 MHz

  • Height:

    2.54 mm

  • JESD-609 Code:

    e3

  • Length:

    8.51 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -45 °C

  • Output Impedance:

    120 OHM Ω

  • Packing Method:

    TR, 13 INCH

  • Rated Current:

    10 A

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Width:

    3.05 mm

28F0121-1SR-10 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 28F0121-1SR-10 is -40°C to +85°C.
  • Yes, the 28F0121-1SR-10 is designed for high-frequency applications up to 6 GHz and is suitable for Wi-Fi, Bluetooth, and other wireless technologies.
  • The typical insertion loss of the 28F0121-1SR-10 is less than 0.5 dB at 2.4 GHz and less than 1.0 dB at 5.8 GHz.
  • Yes, the 28F0121-1SR-10 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
  • The recommended storage condition for the 28F0121-1SR-10 is in a dry, cool place with a temperature range of -20°C to +40°C and relative humidity below 80%.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

28F0121-1SR-10 Overview

Use the download button to access the 28F0121-1SR-10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 28F01, or try a keyword search, such as Data Line Filters

Parts related to 28F0121-1SR-10

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
