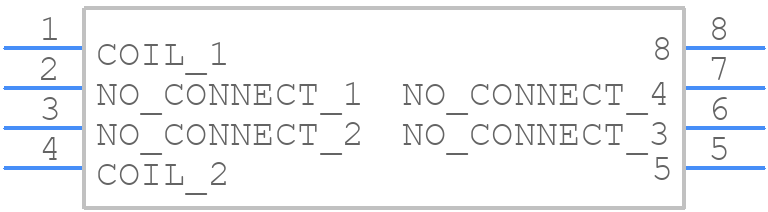

2920-05-121 - Coto Technology

2920-05-121 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and land pattern for the 2920-05-121?
  Coto Technology provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical stress.
• How do I handle the relay's sensitive magnetic field during assembly and testing?
  To prevent damage to the relay, it's crucial to handle the device in a way that minimizes exposure to strong magnetic fields, such as those generated by magnets, motors, or transformers. Use anti-static wrist straps, and avoid touching the relay's pins or leads during assembly and testing.
• What is the maximum switching frequency for the 2920-05-121?
  While the datasheet doesn't specify a maximum switching frequency, Coto Technology recommends limiting the switching frequency to 10 Hz or less to ensure reliable operation and to prevent overheating. Higher frequencies may be possible, but they require careful evaluation and testing.
• Can I use the 2920-05-121 in a high-vibration or high-shock environment?
  The 2920-05-121 is designed for general-purpose applications and may not be suitable for high-vibration or high-shock environments. If your application requires operation in such conditions, consider using a relay with a more rugged design, such as Coto's 2900-HV series.
• How do I ensure the relay's contacts are clean and free of contamination?
  To prevent contact contamination, use a soft, dry brush or a lint-free swab to gently clean the relay's contacts. Avoid using chemicals or solvents, as they can damage the relay's internal components. Also, ensure the relay is stored in a clean, dry environment to prevent moisture accumulation.
