292303-8 - TE Connectivity

Description: A, 2.0, Standard Profile, Receptacle, 1 Port, Top, Right Angle, Box & Tray / Tube, Flush, Through Hole - Solder, Cable-to-Board, USB Connectors

Download 292303-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
292303-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

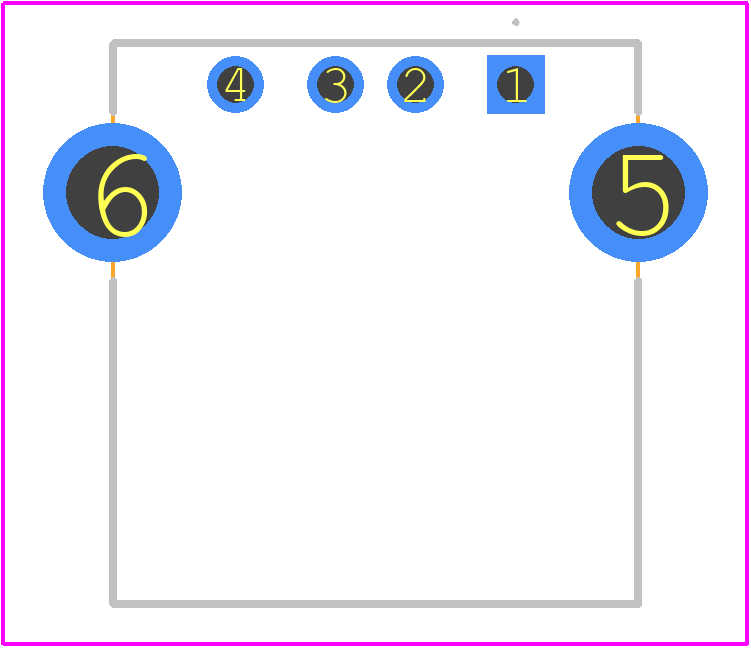

292303-8 - TE Connectivity PCB footprint - Other - Other - 292303-8-2
click to zoom
3D Models
292303-8 - TE Connectivity - 3D model - Other - 292303-8-2
click to zoom

292303-8 Details

  • Manufacturer Part Number:

    292303-8

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    6 Weeks, 5 Days

  • Manufacturer:

    TE Connectivity

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Durability:

    1500 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    29.92u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Shell Finish:

    TIN

  • Shell Material:

    COPPER ALLOY

  • Terminal Length:

    0.097 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

292303-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 292303-8 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure that the connector is properly secured and that the screw terminals are tightened to the recommended torque value to maintain reliable connections.
  • The 292303-8 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure that the connector is properly sealed and that the cable is also rated for outdoor use to maintain the overall system's reliability.
  • The 292303-8 connector is designed to work with specific cable types and sizes. While it may be possible to use it with a different cable type, it's essential to verify the compatibility and ensure that the cable meets the connector's specifications to maintain reliable connections.
  • The operating temperature range of the 292303-8 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its reliability and performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

292303-8 Overview

Use the download button to access the 292303-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 29230, or try a keyword search, such as Telecom and Datacom Connectors
