293D106X9025D8T - Vishay

Description: Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT(TM), Molded Case, Standard Industrial Grade

Download 293D106X9025D8T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
293D106X9025D8T - Vishay - PCB symbol
click to zoom
PCB Footprints

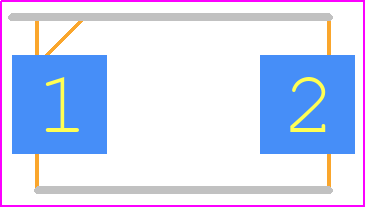

293D106X9025D8T - Vishay PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - Case Code D
click to zoom
3D Models
293D106X9025D8T - Vishay - 3D model - Capacitor Moulded Polarised - Case Code D
click to zoom

293D106X9025D8T Details

  • Manufacturer Part Number:

    293D106X9025D8T

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Israel, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    10 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    1000 mΩ

  • Height:

    2.8 mm

  • JESD-609 Code:

    e0

  • Leakage Current:

    0.0025 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, Embossed Plastic, 7 Inch

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    390 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Tan Delta:

    0.06

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Shape:

    J BEND

  • Width:

    4.3 mm

293D106X9025D8T Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 293D106X9025D8T capacitor is between 260°C to 280°C for a maximum of 10 seconds.
  • Yes, the 293D106X9025D8T capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • The 293D106X9025D8T capacitor has a rated voltage of 250VDC, so it can be used in high-voltage applications up to 250VDC. However, it's essential to ensure that the capacitor is properly derated to account for any voltage spikes or transients.
  • The 293D106X9025D8T capacitor's capacitance value and ESR change with temperature. The datasheet provides a temperature coefficient of capacitance (TCC) and a graph showing the capacitance change with temperature. Engineers should consult the datasheet for specific details.
  • Yes, the 293D106X9025D8T capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
