Part Image

293D108X0004E2TE3 - Vishay

Description: Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT(TM), Molded Case, Standard Industrial Grade

Download 293D108X0004E2TE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
293D108X0004E2TE3 - Vishay - PCB symbol
click to zoom
PCB Footprints

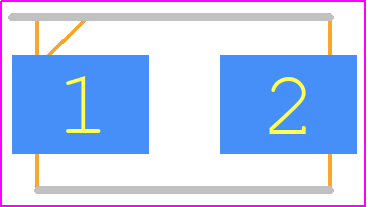

293D108X0004E2TE3 - Vishay PCB footprint - Capacitor Moulded Polarised - Capacitor Moulded Polarised - Case E
click to zoom
3D Models
293D108X0004E2TE3 - Vishay - 3D model - Capacitor Moulded Polarised - Case E
click to zoom

293D108X0004E2TE3 Details

  • Manufacturer Part Number:

    293D108X0004E2TE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Israel, Japan, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    1000 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (DRY/SOLID)

  • ESR:

    500 mΩ

  • Height:

    4 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.04 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, Embossed Plastic, 7 Inch

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    4 V

  • Ripple Current:

    228 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Shape:

    J BEND

  • Width:

    4.3 mm

293D108X0004E2TE3 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
  • Yes, the 293D108X0004E2TE3 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which ensures its reliability in demanding applications.
  • The ESR of the 293D108X0004E2TE3 is relatively low, which means it can handle high-frequency applications with minimal energy loss. A lower ESR also reduces the capacitor's self-heating, increasing its overall reliability.
  • Yes, the 293D108X0004E2TE3 is rated for operation up to 125°C (257°F), making it suitable for high-temperature applications. However, it's essential to derate the capacitor's voltage and current ratings according to the temperature derating curve provided in the datasheet.
  • It's recommended to store the 293D108X0004E2TE3 in a dry, cool place with a temperature range of 10°C to 30°C (50°F to 86°F) and a relative humidity of 60% or less. Avoid storing the capacitor in direct sunlight or near heat sources.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

293D108X0004E2TE3 Overview

Use the download button to access the 293D108X0004E2TE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 293D1, or try a keyword search, such as Tantalum Capacitors
