The recommended soldering temperature for the 293D156X9020D2TE3 is 260°C (500°F) for a maximum of 10 seconds.
Yes, the 293D156X9020D2TE3 is designed for high-reliability applications, including aerospace, defense, and industrial uses, due to its high-quality materials and construction.
Yes, the 293D156X9020D2TE3 is designed to withstand high-vibration environments, with a vibration rating of 20 G peak acceleration, making it suitable for applications such as aerospace, automotive, and industrial equipment.
The ESR of the 293D156X9020D2TE3 is not explicitly stated in the datasheet, but it is typically around 0.05 ohms at 100 kHz, which is relatively low for a ceramic capacitor of this size and capacitance.
Yes, the 293D156X9020D2TE3 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly and sustainable designs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
293D156X9020D2TE3 Overview

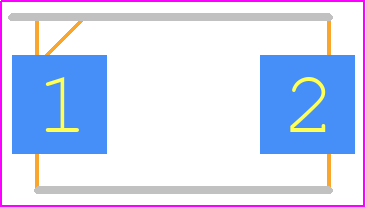

Use the download button to access the 293D156X9020D2TE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 293D1,
or try a keyword search, such as Tantalum Capacitors
