294149-E - TE Connectivity

Description: PCB Mount Header, Vertical, Board-to-Board, 32 Position, .8 mm [.031 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI MicroCon

Download 294149-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

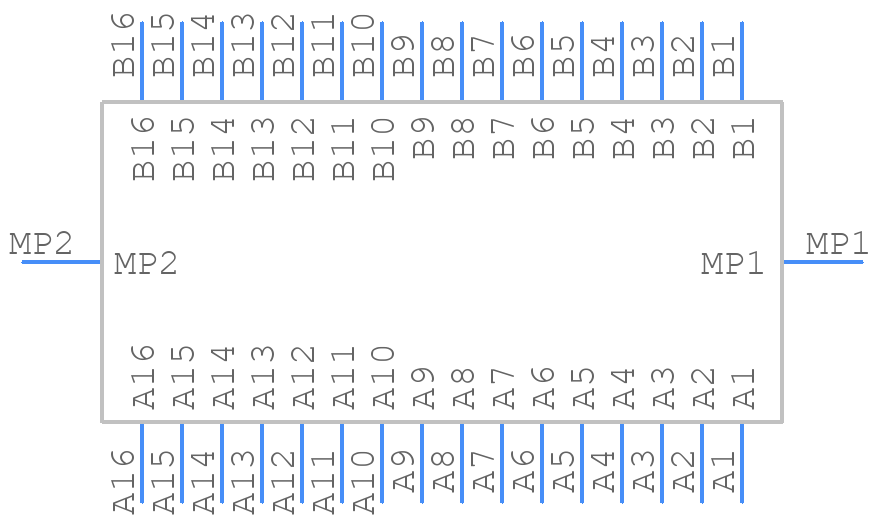

294149-E - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
294149-E - TE Connectivity PCB footprint - Other - Other - 294149-E-2
click to zoom
3D Models
294149-E - TE Connectivity - 3D model - Other - 294149-E-2
click to zoom

294149-E Details

  • Manufacturer Part Number:

    294149-E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    26 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8.68

  • Board Mounting Option:

    LOCATING POST

  • Body Depth:

    0.228 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    2.1A

  • Mating Contact Row Spacing:

    0.049 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    2.1 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94V-0

294149-E Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.2 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 294149-E connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with intense vibrations.
  • The 294149-E connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to ensure the connector's environmental resistance.
  • The 294149-E connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). It's essential to consider the temperature range of your application to ensure the connector's reliability.
  • While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 294149-E connector. However, it's crucial to consult with TE Connectivity's technical support or a qualified engineer to ensure the connector's performance and reliability with alternative wire sizes.
