Part Image

2961464 - Phoenix Contact

Description: DPDT PCB Mount Non-Latching Relay Through Hole, 50 mA, 24V ac

Download 2961464 Model

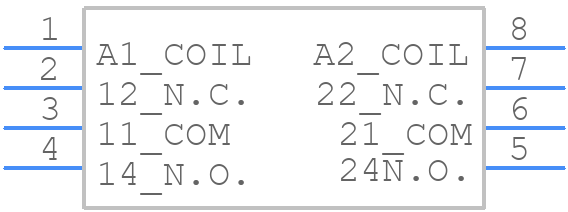

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

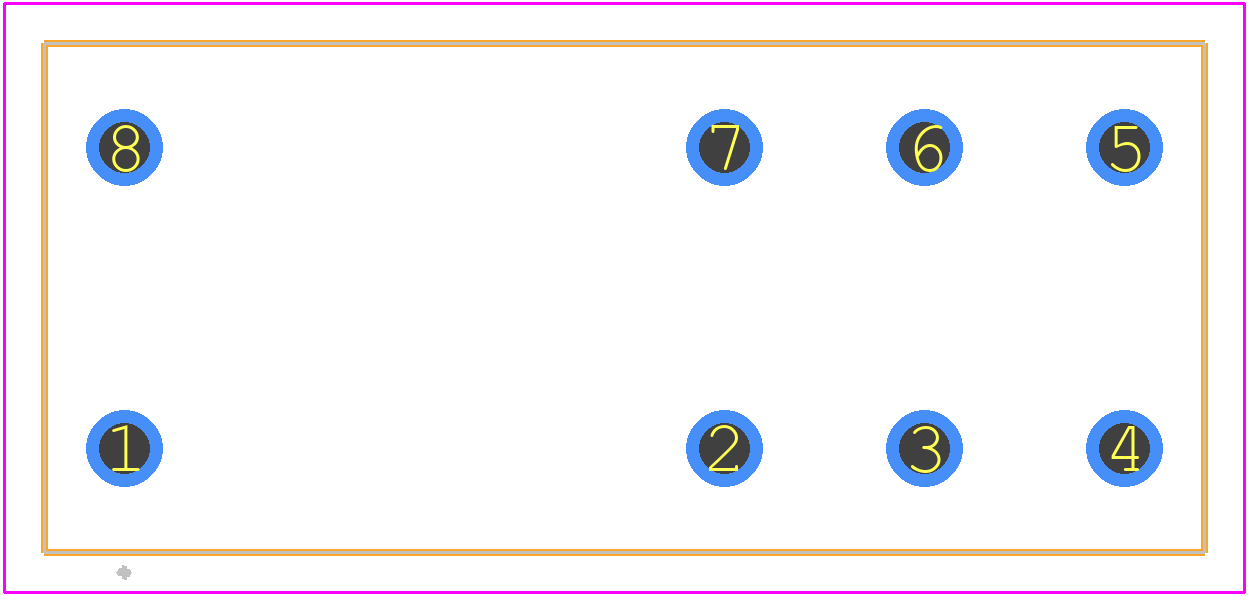

2961464 - Phoenix Contact PCB footprint - Other - Other - 2961464-2
click to zoom
3D Models
2961464 - Phoenix Contact  - 3D model - Other - 2961464-2
click to zoom

2961464 Details

  • Manufacturer Part Number:

    2961464

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Phoenix Contact

  • Relay Type:

    POWER/SIGNAL RELAY

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2961464 Overview

Use the download button to access the 2961464 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 29614, or try a keyword search, such as Power/Signal Relays

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
