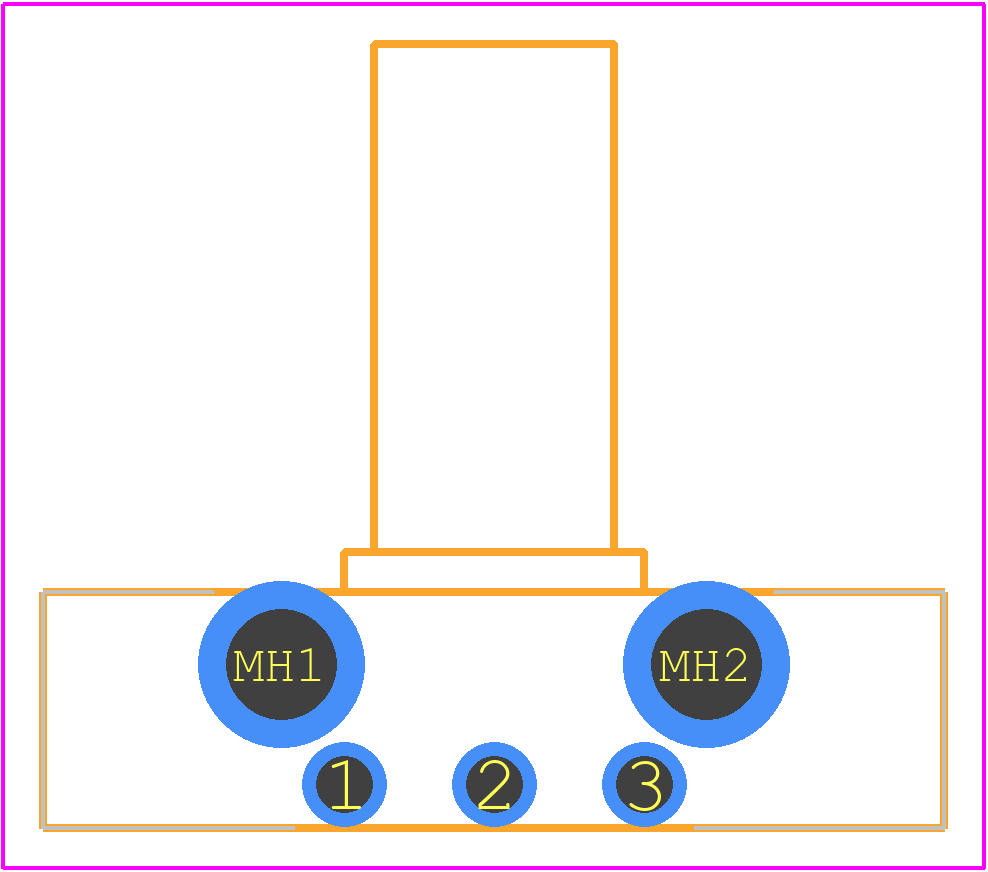

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 296XD104B1N
- Part Number 296XD104B1N
- Manufacturer CTS
- Pin Count 5
- Part Category Variable Resistor
- Package Category Other
- Footprint Name Other - 296XD104B1N
- Released Date Oct 11, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
296XD104B1N Details
-
Manufacturer Part Number:
296XD104B1N
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Reach Compliance Code:
Unknown
-
ECCN Code:
EAR99
-
HTS Code:
8533.40.80.70
-
Manufacturer:
CTS Corporation
-
YTEOL:
0
-
Construction:
Rotary
-
Lead Length:
4 mm
-
Operating Temperature-Max:
80 °C
296XD104B1N Frequently Asked Questions (FAQs)
-
The recommended soldering temperature for the 296XD104B1N is between 250°C to 260°C for a maximum of 10 seconds.
-
Yes, the 296XD104B1N capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
-
The maximum operating voltage derating for the 296XD104B1N is 80% of the rated voltage at 125°C, and 90% of the rated voltage at 85°C.
-
Yes, the 296XD104B1N capacitor is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
-
The moisture sensitivity level (MSL) of the 296XD104B1N is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before reflow soldering.
Trust Checks
Expert Contribution
System Verified
Community Approved
296XD104B1N Overview
Use the download button to access the 296XD104B1N schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 296XD,
or try a keyword search, such as Variable Resistors
