2CT3000-W08300 - Multicomp Pro

Description: CIRCULAR CONN, RCPT, 8POS, PANEL; Product Range:Standard Size Series; Circular Connector Shell Style:Panel Mount Receptacle; No. of Contacts:8Contacts; Circular Contact Type:PCB Pin; Coupling Style:Bayonet; Contact Plating:Gold RoHS Compliant: Yes

Download 2CT3000-W08300 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
2CT3000-W08300 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

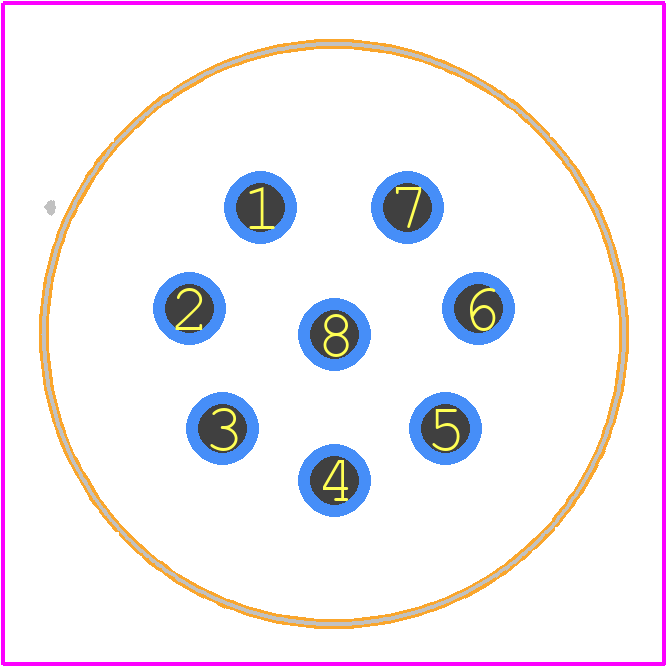

2CT3000-W08300 - Multicomp Pro PCB footprint - Other - Other - 2CT3000-W08300-1
click to zoom
3D Models
2CT3000-W08300 - Multicomp Pro - 3D model - Other - 2CT3000-W08300-1
click to zoom

2CT3000-W08300 Details

  • Manufacturer Part Number:

    2CT3000-W08300

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    SPC Multicomp

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Gender:

    MALE

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Environmental Characteristics:

    CORROSION RESISTANT

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    WATERPROOF

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

2CT3000-W08300 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for the 2CT3000-W08300 is -40°C to 125°C.
  • Yes, the 2CT3000-W08300 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The operating temperature range for the 2CT3000-W08300 is -40°C to 85°C.
  • The MSL of the 2CT3000-W08300 is MSL 3, which means it can withstand up to 168 hours of exposure to moisture before soldering.
  • Yes, the 2CT3000-W08300 is designed to withstand high-vibration environments, making it suitable for use in applications such as industrial control systems, automotive systems, and more.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

2CT3000-W08300 Overview

Use the download button to access the 2CT3000-W08300 schematic symbol, PCB footprint, and 3D model.
